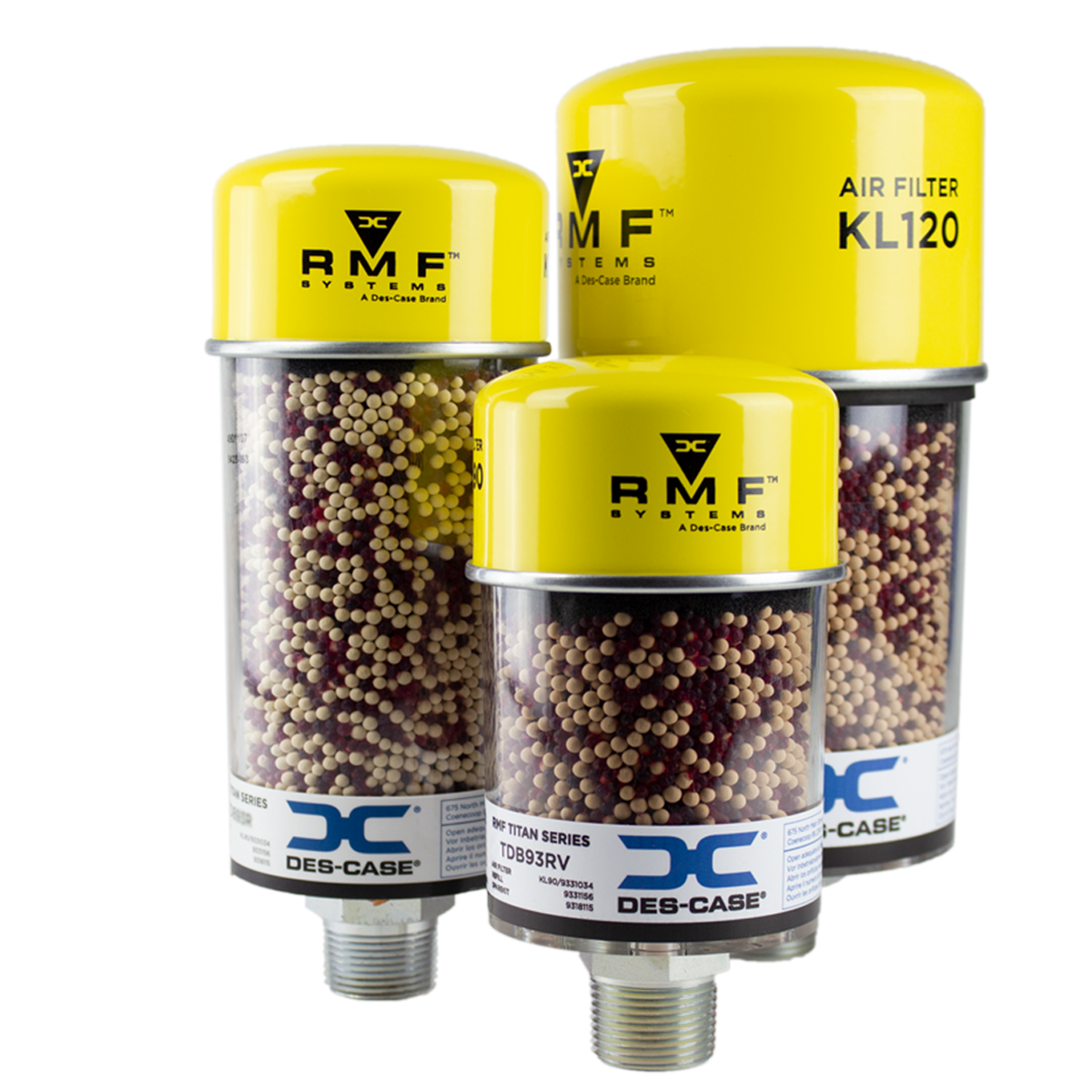

Titan Breathers

The Titan series operates by the same efficient process as other Des-Case breathers. The difference is the serviceability of the breather and its high dirt holding capacity.

Compare Models (3)

Try One on Us

Request your complimentary desiccant breather today.

Specifications

Model Specs

Model Weight Dimension H x D Max. Airflow without Check Valves Max. Airflow with Check Valves Connection
93 Series ± 0,9 kg / 1.98 lbs ± 183 x 100 mm / 7.20 x 3. 94 in 700 l/min 300 l/min 3/4” BSPP male
1” BSPP male
1” NPT male
96 Series ± 1,1 kg / 2.42 lbs ± 243 x 100 mm / 9.57 x 3. 94 in 700 l/min 300 l/min 3/4” BSPP male
1” BSPP male
1” NPT male
121 Series ± 1,5 kg / 3.3 lbs ± 267 x 130 mm / 10.51 x 5.11 in 1500 l/min 400 l/min 1 1/4” BSPP male
1 1/4” BSPP female
1 BSPP male
1” NPT male

Features

By the Numbers

1–High Capacity and Dirt Holding Cartridge Filter

Good for those very dusty and dirty environments and reduces contamination of your oils by removing solid particles (down to 3μ).

2–Serviceability with Replacement Kit

If you don’t want to completely replace your breather, Titan breathers are completely serviceable with spare filter elements or refills of ZR gel granules.

3–Modular Threading Mounting Options

Multiple options for different threads through the addition of a metal adapter

4–Option to Upgrade to Breather with Check Valves

Optional check valves can also be added to the Titan series. These valves are fitted in opposing directions, opening while inhaling or exhaling. This prevents atmospheric contact between the air and the ZR Gel under static conditions, increasing the lifetime of the drying agent.

5–Integrated Anti-Splash Device

Comes standard with an integrated anti-splash device to eliminate oil from the equipment reservoir reaching the air filter and ZR Gel.

6–ZR Gel

Consists of a mixture of Zeolites and silica gel.
