Connected By-Pass Units

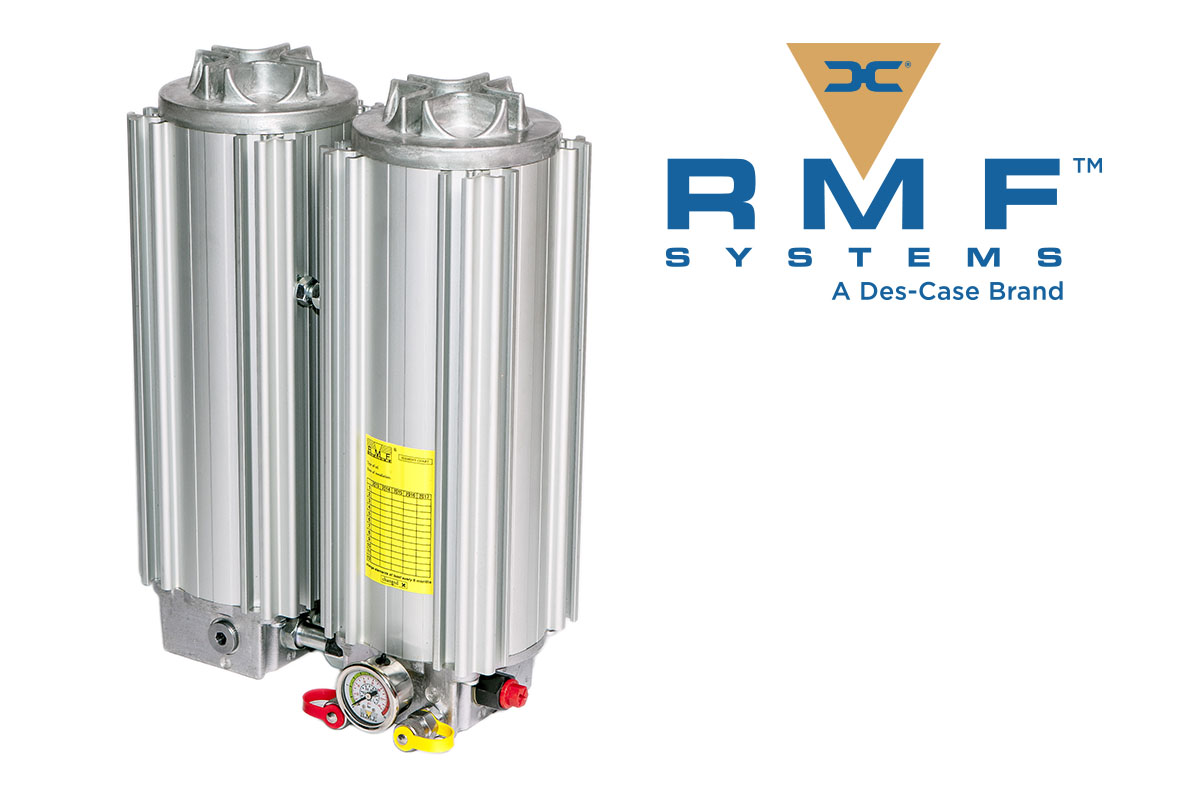

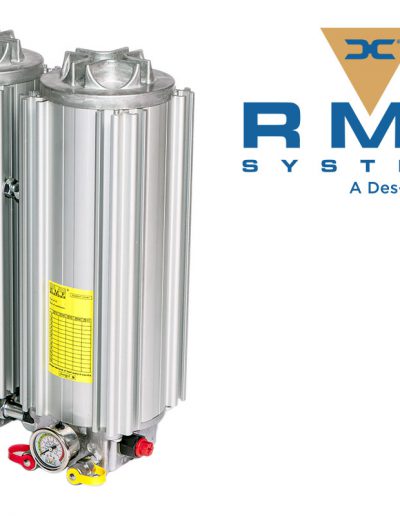

The RMF By-Pass Units are especially designed for mobile application in hydraulic and/or transmission systems. RMF By-pass filter units can be fitted to every imaginable mobile application where hydraulic and/or transmission systems are present.

Connected By-Pass Units enable machine operators to keep their hydraulic oil clean and monitor contamination levels real-time in one economical installation. They can be easily mounted to new and existing installations, and combine all advantages of By-Pass filters and Contamination Monitoring Sensors.

Specifications

Model Specs

Model Material Filter Housing Seal Material Nominal Flow By-Pass Openings Pressure Standard Max Oil Temperature¹ Suitable Elements Min Overhead Clearance for Element Removal Operating Pressure Flow Control Valve (min-max) Max Pressure Filter Housing Dirt Indicator Inlet Connection Outlet Connection Max Tank Volume Fluid Compatibility² Approximate Weight
BPUS1A Anodised Aluminum NBR or FPM (see ordering code) 2,1 l/min 6,2 bar (at 0 bar back pressure) 80° C 30HB, 30HV, 30NB, 30NV, 30G1B, 30G1V, 30G3B, 30G3V, 30A5B 400 mm 12 – 420 bar 20 bar Pressure Gauge (0 – 10 bar) 12S ½” BSP female ±750 l Hydraulic fluids according ISO 2943 7 kg
BPUS1B Anodised Aluminum NBR or FPM (see ordering code) 4,2 l/min 6,2 bar (at 0 bar back pressure) 80° C 30HB, 30HV, 30NB, 30NV, 60HB, 60HV, 60NB, 60NV, 30G1B, 30G1V,
30G3B,30G3V, 30A5B, 60G1B, 60G1V, 60G3B,60G3V
700 mm 12 – 420 bar 20 bar Pressure Gauge (0 – 10 bar) 12S ½” BSP female ± 1500 l Hydraulic fluids according ISO 2943 11 kg
BPUS2A Anodised Aluminum NBR or FPM (see ordering code) 4,2 l/min 6,2 bar (at 0 bar back pressure) 80° C 30HB, 30HV, 30NB, 30NV, 30G1B, 30G1V,30G3B, 30G3V, 30A5B 400 mm 12 – 420 bar 20 bar Pressure Gauge (0 – 10 bar) 12S ½” BSP female ± 1500 l Hydraulic fluids according ISO 2943 14 kg

¹For other oil temperatures please contact us.
²For other fluids, please contact us.

Features

The By-pass filter comes equipped with an integrated pressure compensated flow control valve. This valve bleeds oil from the main hydraulic system, passes this through the filter after which it is returned to the hydraulic reservoir. The amount of oil extracted from the main system at any time is insignificant ensuring that it will not affect the working of the main system. Most commonly used biodegradable oils in the mobile sector are suitable for filtration with RMF filter elements.

RMF By-pass filter units can be fitted to every imaginable mobile application where hydraulic and/or transmission systems are present.

  • Excavators
  • Wheel loaders
  • Forestry machines
  • Asphalting machines
  • Cement mixers
  • Aircraft ground support equipment
  • Sugar cane harvesters
  • Agricultural machines
  • Extremely clean oil due to high filtration efficiency
  • Prevention of channel forming by radial filtration direction
  • Large dirt and water holding capacity
  • Compact and easy-maintenance design
  • Environmentally friendly elements available
  • Longer usage life for oil and components
  • Reduces cost of ownership
