Features
By the Numbers
By the Numbers1. Rugged Exterior
Durable, shock absorbing housing.
2. Threaded Mounting
Easily replaces standard filler/breather cap with adapter/reducer options
3. Hydrophobic Filter Element
Particulate filter element repels water and protects against dirt
By the Numbers
1–Pleated Element
Pleated filter element protects against particulate contamination.
2–Hydrophobic Filter Element
Particluate filter element repels water and protects against dirt.
3–Oil Coalescing
ePTFE coating allows oil mist to coalesce.
4–Threaded Mounting
Easily replaces standard filler/breather cap with adapter/reducer options.
5–Rugged Exterior
Durable, shock-absorbing housing.
Applications
- Low Humidity
- Oil Misting
- Arid Environments
- High Dust
- Water-Based Fluids
- Oil Sight Glasses (DC-ND-2)
- Small Gearboxes (DC-ND-2)
Specifications

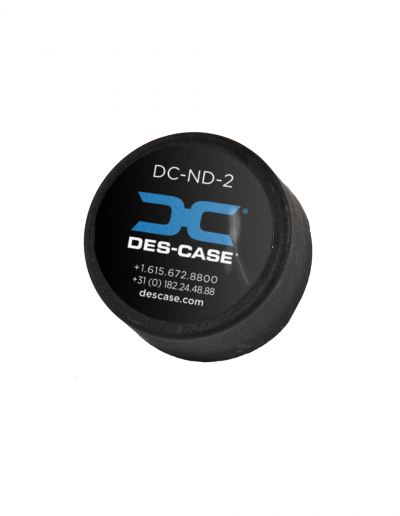

Model
DC-ND-2
Unit Height
1.4 in (34 mm)
Unit Diameter
1.8 in (46 mm)
Filter Efficiency
0.3μ absolute (β0.3≥1000)
Max. Flow Rate
0.67 cfm (19 lpm)
Operating Temp. Range
-40°F to 300°F (-40°C to 149°C)
Connection Size
3/8″
Suction/Return Rate at 1 psid
5 gpm (19 lpm)
Gearbox/Storage Tank Max. Volume
15 gal (57 L)
Hydraulic Reservoir Max. Volume
15 gal (57 L)

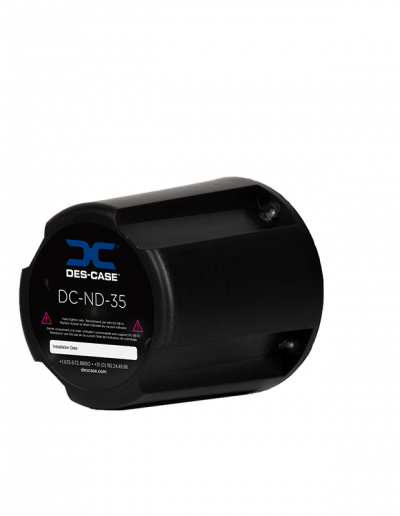

DC-ND-35
Unit Height
5 in (127 mm)
Unit Diameter
5 in (127 mm)
Filter Efficiency
0.3μ absolute (β0.3≥1000)
Max. Flow Rate
40 cfm (1132 lpm)
Operating Temp. Range
-40°F to 300°F (-40°C to 149°C)
Connection Size
1″ Female (FNPT)
Suction/Return Rate at 1 psid
300 gpm (1,132 lpm)
Gearbox/Storage Tank Max. Volume
Sizing should be made per flow rate
Hydraulic Reservoir Max. Volume
Sizing should be made per flow rate
Adapters
Part Number
DC-SB-VI
Descriptions
1″ NPT Vacuum Indicator Adapter (DC-ND-35)
Equipment Connection / Port Size
1″ NPT Male
