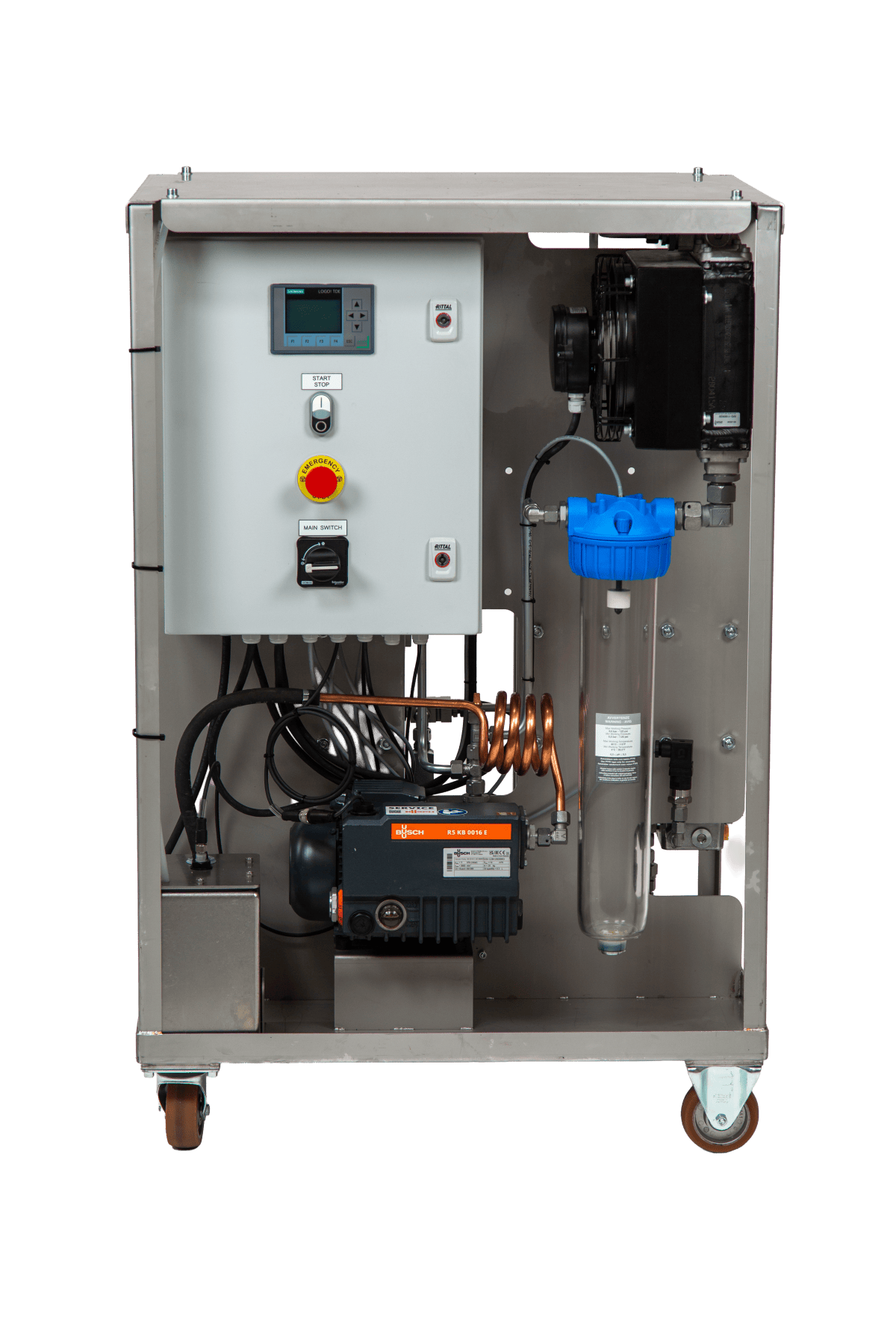

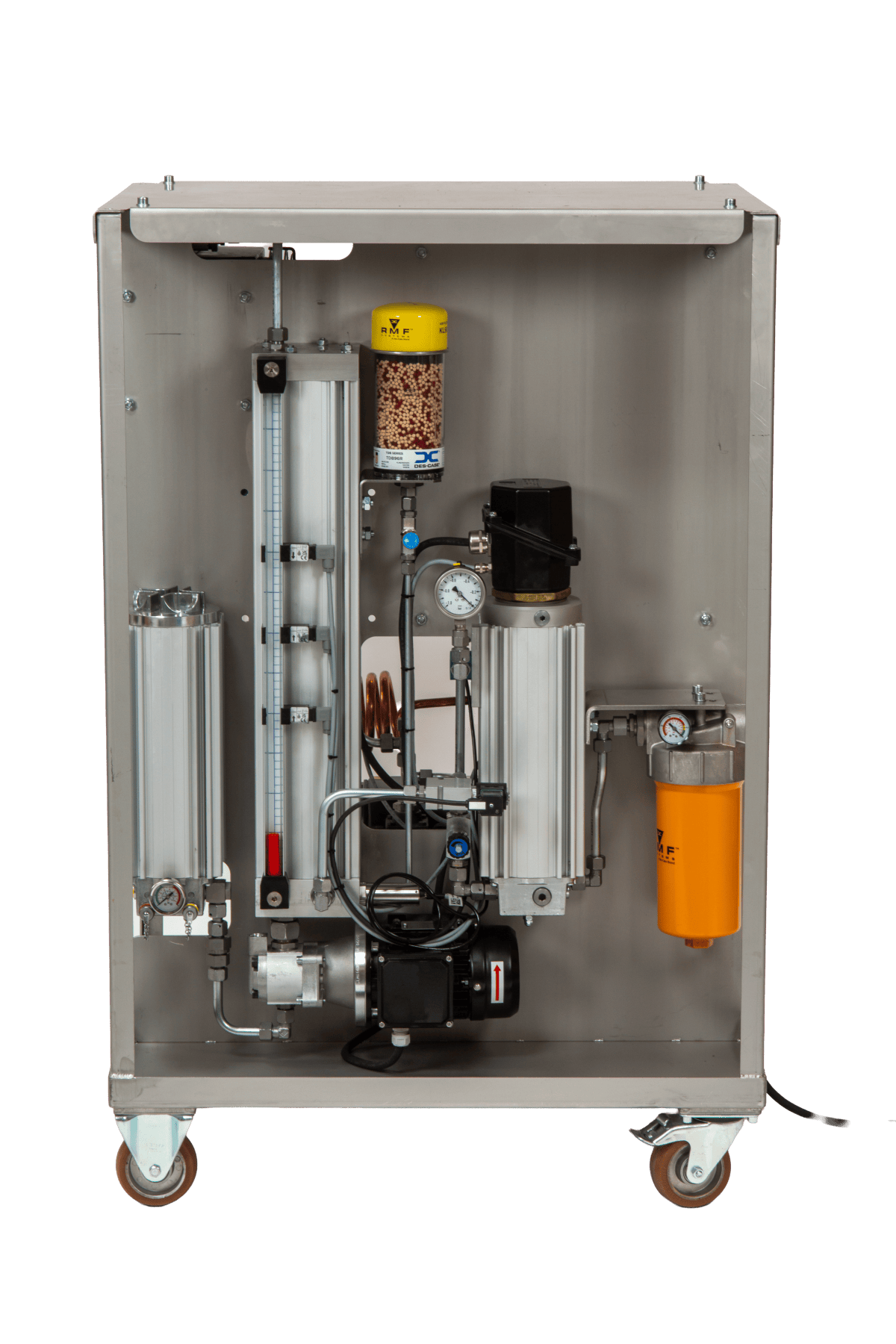

Mini Water VAC

The Vacuum Dehydration Units remove liquid, gas and solid contamination, which are corrosive and contribute to the reduction of machine life. Water, gas and solid particle contamination greatly increase maintenance costs and contribute to unwanted break downs or total machine failures. The Mini Water Vac offers protection against malfunctions, break downs and total failures. The dehydration units also protect the environment by reducing oil consumption and oil disposal along with its inherent costs and problems.

Contact Us

Features

Compact yet powerful, the Mini Water Vacuum Dehydrator eliminates water and particulate contamination from lubricating and hydraulic oils, helping extend oil and equipment life whilst lowering maintenance costs.

By the Numbers

1. New and updated PLC system allows for the user to maintain the unit without opening the control box

2. Vacuum Pump eliminates all residual moisture in the unit.

3. Clear results you can see – Water condensing bowl allows you to see the results right at your fingertips.

4. Compact by nature, the Mini Water Vac unit is specifically designed to operate in small and tight spaces.

5. Suction filter traps and removes impurities from the hydraulic fluid, protecting the unit and extending equipment life.

6. Integrated, highly efficient Offline Filtration Unit (OLU) removes harmful particles and extends equipment life.

7. Optional MCS option – Provides real-time measurements of water levels in your oil.

8. High Viscosity Mode – The Mini Water Vac unit can handle oil viscosities up to 500 cSt

Specifications

Nominal Flow Rate	0.6 GPM [2.2 l/min] at 50Hz 0.7 GPM [2.6 l/min] at 60Hz
Viscosity Range	10 – 500 cSt
Ambient Temperature Range	34° F to 104° F [1 °C to 40 °C]
Protection Class & Power Supply	IP55 – 400 VAC at 50Hz, 480 VAC at 60Hz
Main Filter Media	Microglass
Suction Filter Rating	250 micron wire mesh
Connections	Inlet: 1 1/4″ BSP female Outlet: 1/2” BSP female
Max. Inlet & Return Pressure	14.5 PSI [1 bar]
