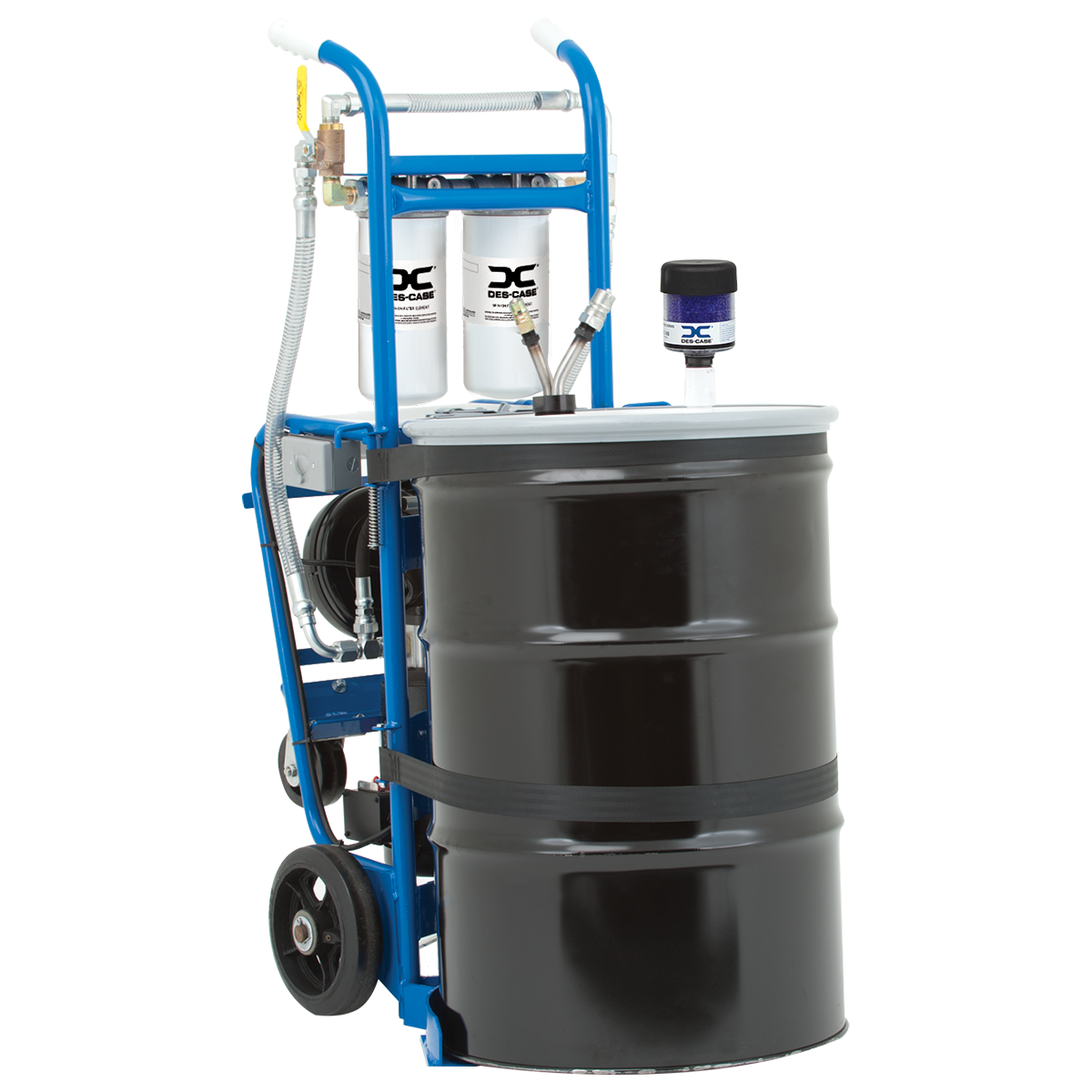

Drum Filter Cart

This cart is ideal for pre-cleaning, protecting, and transferring oil from a conveniently attachable, secured drum. A drum adapter kit with a desiccant breather is included for complete contamination control.

Specifications

For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of ISO VG 680 (3000ssu/ 648cSt) at 100°F/38°C within ambient temperature ranges of -15°F to 150°F (-26°C to 66°C).

Materials

  • Frame: Carbon steel
  • Paint: Industrial powder coat
  • Filter Heads: Aluminum
  • Fittings: Zinc plated steel and/or brass
  • Pumps: Aluminum/steel
  • Hoses: Clear PVC with steel wire or hydraulic hose
  • Gasket: Buna-N

Filter Indicators

  • Filter indicator pops at 22psid (1.55bar) as warning that filter elements need to be replaced

Pump Relief

  • Opens at 65psi

Weight

  • Approximately 175-250lbs without drum (will vary depending on options selected)

Dimensions

  • 30″L x 24.75″W x 57.85″H

Features

What is Standard

  • Automatic pressure relief valve
  • Dual-stage filtration
  • 12′ hose assemblies with various quick connect options
  • Rugged, powder-coated dolly with plastic removeable drip pan
  • Adjustable, heavy-duty straps with spring-loaded clips to secure drum
  • Remote-mounted power switch
  • Casters for easy mobility
  • Mating color-coded drum adapter kit for easy connection
  • One-year warranty

What is Customizable

  • Flow rates
  • Filter bypass
  • Sample valves
  • Y-strainer
  • Color
  • Hose-end connection sizes and types
  • Micron rating of filters
