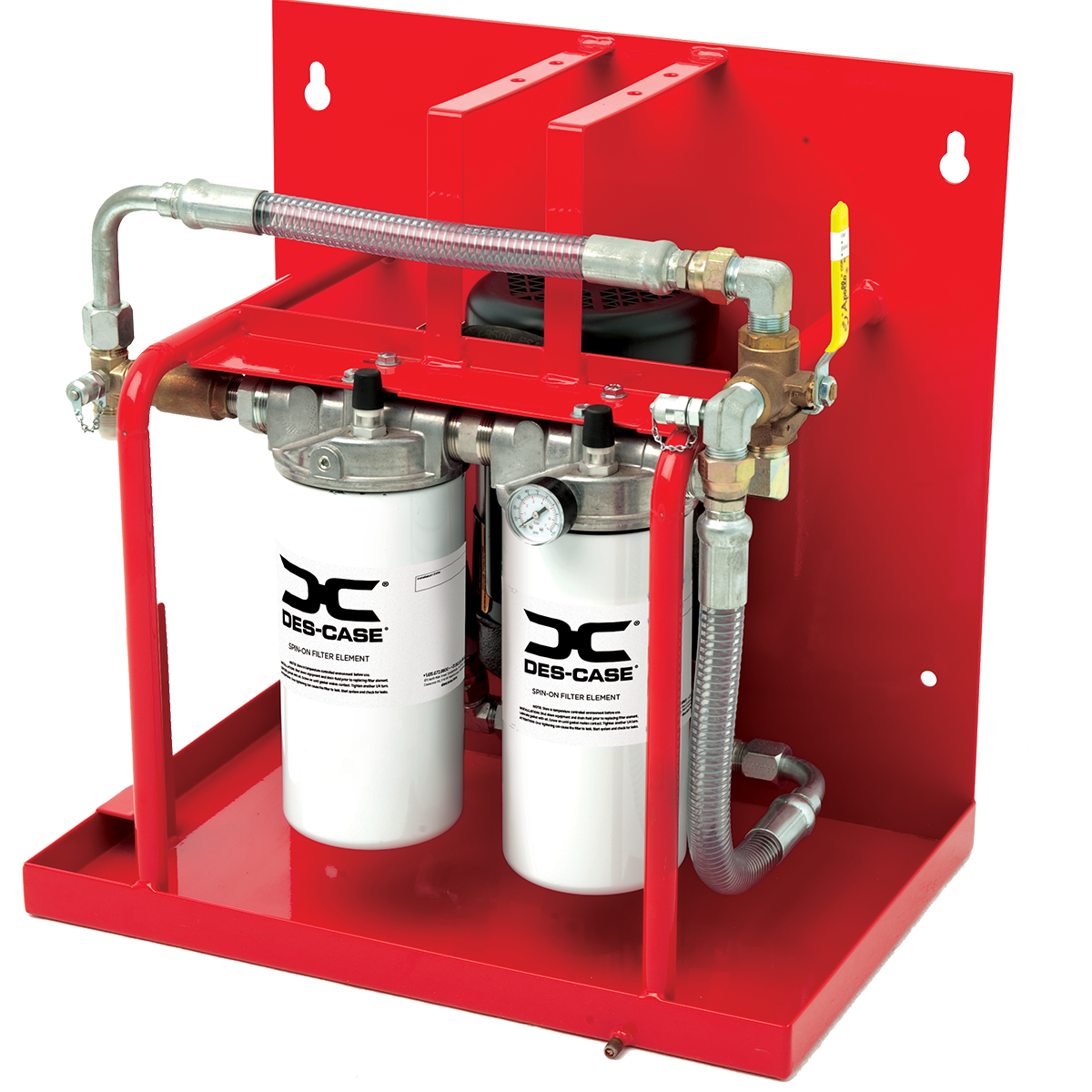

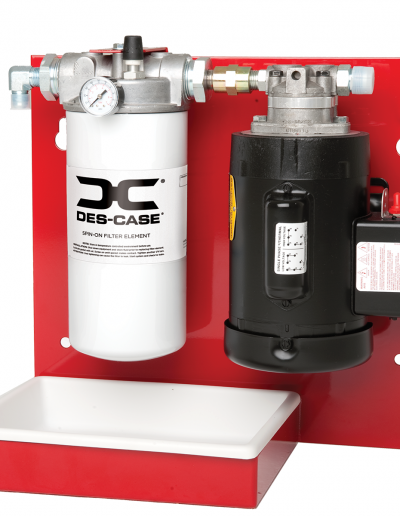

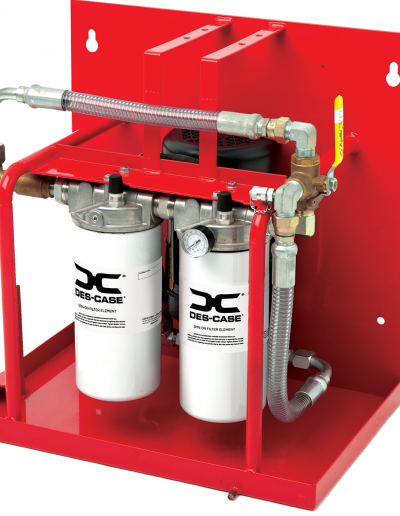

Panel Unit

Panel units are ideal for mineral-based industrial fluids in small to medium-sized reservoirs with low flow rates. Whether you have an application that needs regular filtration, or a maintenance location where you bring equipment to be filtered, the Des-Case panel unit is a made-to-order solution that can be mounted where you need it most.

Contact Us

Panel Units

Panel units are ideal for mineral-based industrial fluids in small to medium-sized reservoirs with low flow rates. Whether you have an application that needs regular filtration, or a maintenance location where you bring equipment to be filtered, the Des-Case panel unit is a made-to-order solution that can be mounted where you need it most. Build yours today by simply clicking on the desired options below.

< Back

Reset All

Download Technical Specs

Operating Temperatures

-40°F to 150°F (-40°C to 66°C) for standard unit with clear PVC plumbing hoses
-20°F to 212°F (-28°C to 100°C) for custom unit with hydraulic plumbing hoses and Viton or EPDM seals

Materials

Frame: Carbon steel
Paint: Industrial powder coat
Filter Heads: Aluminum
Fittings: Zinc-plated steel and/or brass
Pumps: Aluminum/steel
Plumbing Hoses: Clear PVC with steel wire
Gaskets: Buna-N

Filter Indicators

Filter indicator pops at 22 psid (1.55 bar) as warning that filter elements need to be replaced

Pump Relief

Opens at 65 psi (5.49 bar)

Weight

Approximately 100 to 130 lbs (50 to 61Kg). Will vary depending on option

Dimensions

15.6″L x 23.4″W x 25.8″H

Viscosity Range

Up to ISO VG 680 at 100°F/38°C (3000ssu/ 648cSt)

Replacement Parts

Elements are sold in cases of six and can be mixed and matched.

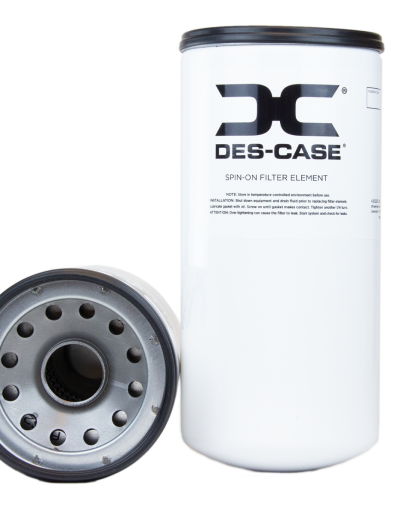

Replacement Filter Element Part Numbers

DC-S10000S08BBU	5-micron Filter Element
DC-S10000S08CBU	7-micron Filter Element
DC-S10000S08EBU	12-micron Filter Element
DC-S10000S08FBU	22-micron Filter Element
DC-S10000W08FBU	Water Adsorption Filter Element

Features

Applications

Decontaminating systems
Cooling systems
Collecting oil samples for analysis

Intended Use

To be used for offline, secondary filtration and not inline filtration
In general industrial environments, both indoors and outdoors (IP rating of 54)
For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of ISO 680 at 100°F/38°C (3,000 ssu/648cSt) within ambient temperature ranges of -15°F to 104°F (-26°C to 40°C)
Placed at the same level or below the equipment being filtered and within reach of the recommended standard 12 foot hoses
This system should be stored and used on a level surface, right side up, in a low-traffic area, and connected to the appropriate power source
