Drum Topper

Compact, portable and customized for your application, the drum topper is an option you can carry wherever you need to go. Our drum topper provides many uses, including:

Filtering new oil directly from the drum
Allowing you to fill small totes
Acting as an offline filter for critical equipment

View CE Solution

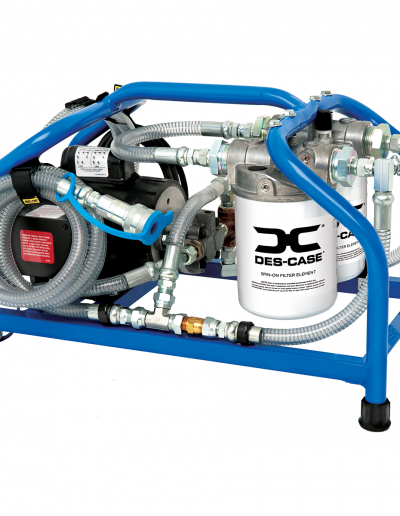

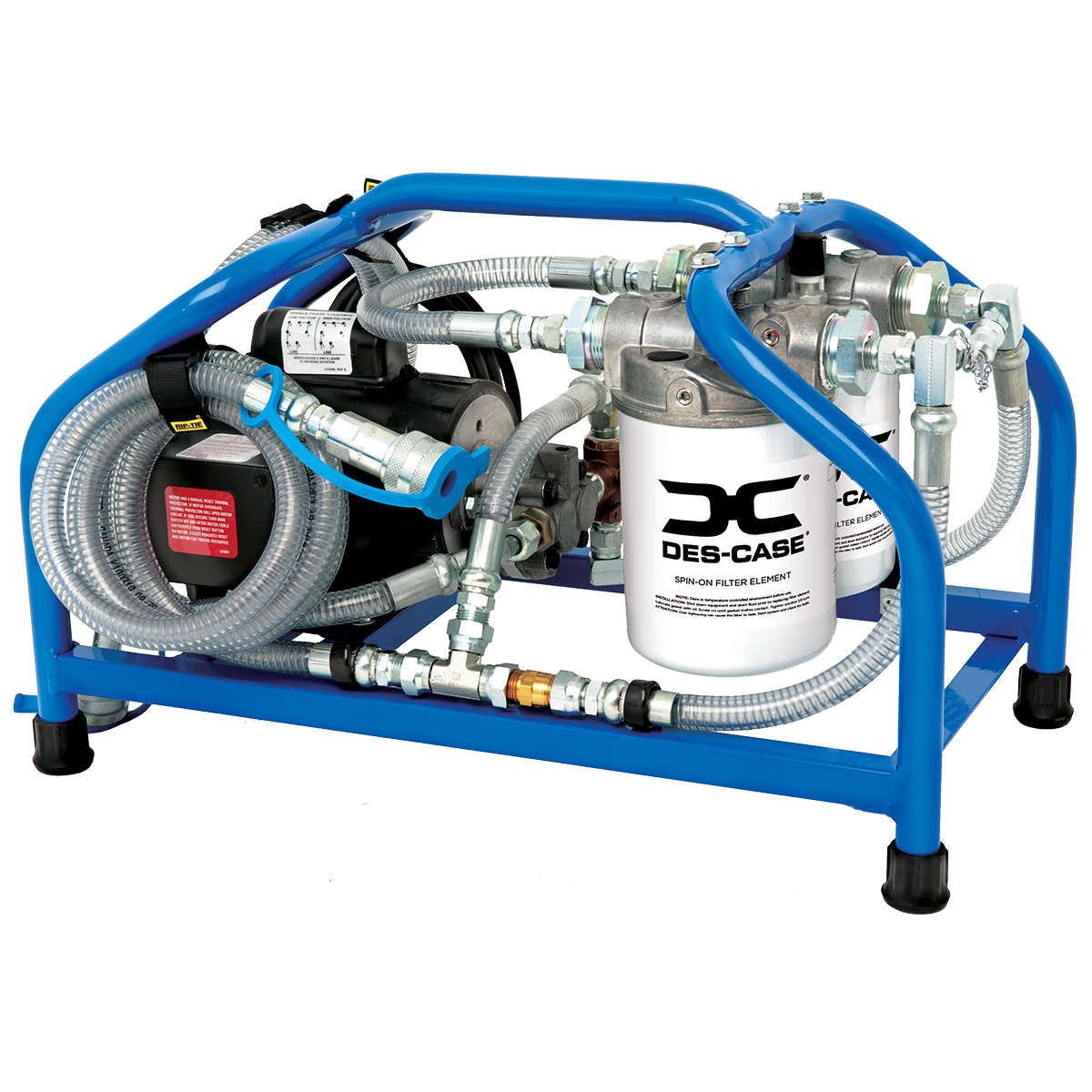

Handheld Drum Toppers

Compact, portable and customized for your application, the drum topper is an option you can carry wherever you need to go. Our drum topper provides many uses, including: Filtering new oil directly from the drum Allowing you to fill small totes Acting as an offline filter for critical equipment You can completely customize your drum topper below. Simply click on the desired options to create your specific drum topper unit.

< Back

Reset All

Specifications

Download Technical Specs

For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of ISO 10-460 (2000ssu/431cSt) at 100°F/38°C within ambient temperature ranges of -8°F to 104°F (-22°C to 40°C)

Materials:

Frame: Aluminum
Paint: Industrial powder coat
Filter Heads: Aluminum
Fittings: Zinc-plated steel and/or brass
Pumps: Aluminum/steel
Hoses: Clear PVC with steel wire
Gaskets: Buna-N

Filter Indicators:

Filter indicator pops at 22psid (1.55bar) as warning that filter elements need to be replaced

Pump Relief:

Opens at 65psi (5.49bar)

Weight:

Approximately 45-55lbs/20.4-24.9Kg (will vary depending on options selected)

Dimensions:

24.5″L x 13.5″W x 15.4″H

Replacement Parts

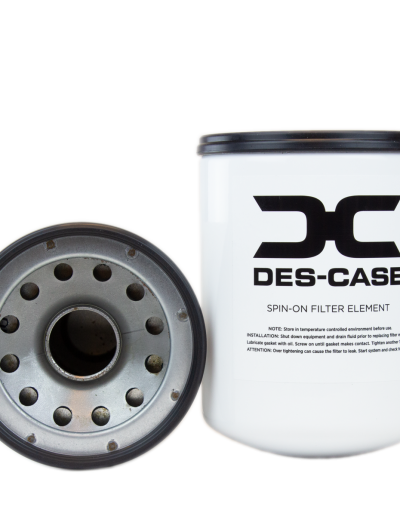

Replacement Filter Element Part Numbers

DC-S10000S04BBU	5-micron Filter Element
DC-S10000S04CBU	7-micron Filter Element
DC-S10000S04EBU	12-micron Filter Element
DC-S10000S04FBU	22-micron Filter Element
DC-S10000W04FBU	Water Adsorption Filter Element

Features

Applications

Decontaminating systems
Flushing new or repaired systems
Dispensing new oil
Pre-filtering new oil
Evacuating used oil
Topping off reservoirs
Collecting oil samples for analysis

Intended Use

To be used for offline, secondary filtration and not inline filtration
In general industrial environments, both indoors and outdoors (IP rating of 54)
For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of ISO 460 at 100°F/38°C within ambient temperature ranges of -8°F to 104°F (-22°C to 40°C)
Placed at the same level or below the equipment being filtered and within reach of the recommended standard 6 foot hoses
This system should be stored and used on a level surface, right side up, in a low-traffic area, and connected to the appropriate power source

What is Standard

Automatic pressure relief valve
Non-bypass filter heads
Dual-stage filtration
6′ hose assemblies with various quick connect options
25′ power cord (for electric motors only)
Industrial powder-coated paint
One-year warranty

Did You Know...

Moisture contamination is the second most destructive contaminant in most systems?

New oil is not clean oil when it arrives at your site.

The “one size fits all” approach is not idea when it comes to selecting the right filtration needs? It is best to find the right fit for each particular application.
