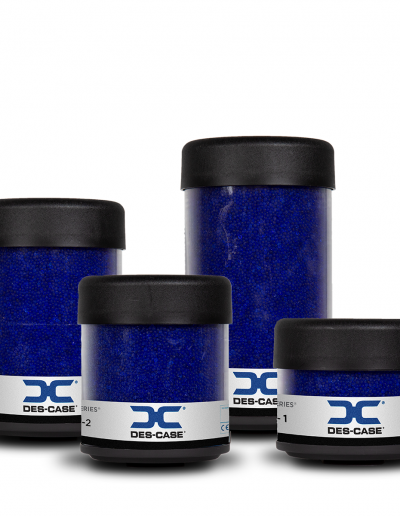

|Model||Unit Height (in / mm)||Unit Diameter (in / mm)||Connection Size||Amount of Silica Gel (lbs / kg)||Adsorption Capacity (fl oz / ml)||Flow Rate (cfm)||Flow Rate (lpm)||Filter Efficiency||Operating Temp. Range (°F)||Operating Temp. Range (°C)|

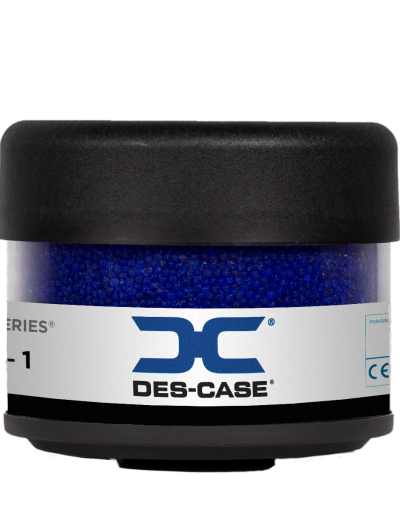

|DC-EX-1||4.7 / 119||5.66 / 143.88||1″ Female (FNPT)||1.2 / 0.54||7.7 / 228||27 @ 1 psid||765||3µ absolute (β₃≥200)||-20° to 200°||-29° to 93°|
|DC-EX-2||6.4 / 163||5.66 / 143.88||1″ Female (FNPT)||2.2 / 1.0||14.1 / 417||26 @ 1 psid||736||3µ absolute (β₃≥200)||-20° to 200°||-29° to 93°|

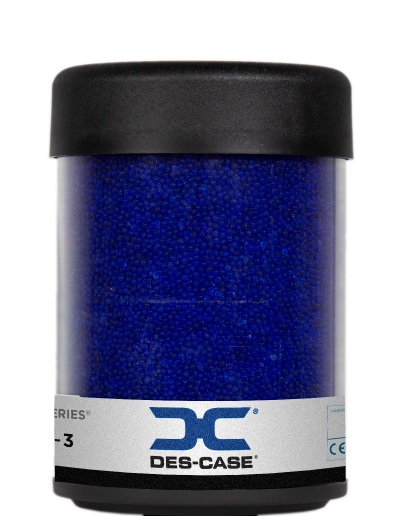

|DC-EX-3||8.3 / 208||5.66 / 143.88||1″ Female (FNPT)||3.2 / 1.45||20.5 / 606||25 @ 1 psid||708||3µ absolute (β₃≥200)||-20° to 200°||-29° to 93°|
|DC-EX-4||10.0 / 254||5.66 / 143.88||1″ Female (FNPT)||4.2 / 1.91||27.0 / 798||24 @ 1 psid||680||3µ absolute (β₃≥200)||-20° to 200°||-29° to 93°|
|Model||Suction/Return Rate at 1 psid (gpm/lpm)||Gearbox/Storage Tank Max. Volume (gal/L)||Hydraulic Reservoir Max. Volume (gal/L)|
|DC-EX-1||202 / 765||400 / 1,514||100 / 379|
|DC-EX-2||195 / 736||600 / 2,271||200 / 757|
|DC-EX-3||187 / 708||800 / 3,028||300 / 1,136|
|DC-EX-4||180 / 680||1,000 / 3,785||400 / 1,514|
Please Note: This is intended as a general guideline for sizing only; other considerations, such as: humidity level, frequency of air flow, ambient temperatures, and chemical compatibility are very important in sizing a breather properly. Larger applications and special circumstances typically require the most thorough analysis. Please contact Des-Case for assistance in sizing a breather.
Did You Know...
|DC-EXVA-12M||3/4″ MNPT Steel Vent Valve Adapter for Extended Series Breathers”|
|DC-EXVA-16M||1″ MNPT Steel Vent Valve Adapter for Extended Series Breathers”|
|DC-EXA-10||1″ MNPT Threaded Steel Adapter for Extended Series Breathers”|
|DC-EXA-17||3/4″ MNPT Threaded Steel Adapter for Extended Series Breathers”|
By the Numbers
High-quality umbrella check-valves that won’t clog or stick are located underneath the unit for added protection from washdown environments. Check-valves isolate equipment from ambient conditions prolonging breather life, and protecting system integrity.
2–Integrated Nylon Standpipe
The integrated standpipe provides excellent vibration resistance and dissipates impact throughout the unit, eliminating weak points. It also allows even airflow distribution throughout the unit, preventing inaccurate readings of desiccant saturation.
3–Honeycomb Technology Oil Mist Reducer
The oil mist reducer is situated inside the standpipe, made from polypropylene for maximum chemical compatibility. Mimicking nature’s intricate honeycomb design, this feature allows oil mist to coalesce and drain back into the reservoir, rather than compromising the desiccant.
4–Resilient Polycarbonate Body
Shock-absorbing, clear casing provides reliable service, easy visual maintenance, and UV resistance.
Polyester filter element removes airborne contamination to 3-micron absolute. Unique loops allow particles to release during system exhalation, helping to increase breather life.
Foam filter captures any oil mist and disperses incoming air evenly over filtration and drying areas.
7–Water Vapor Adsorbent
Silica gel adsorbs water from incoming air and can hold up to 40% of its weight. Condition is indicated by change of color from blue to light pink.
8– Secondary Filter Element
Second polyester filter element protects against migration of desiccant dust, providing maximum efficiency.
Internal threads provide durability and stability and can be used with one of several adapters.
- Storage Tanks
- Wind Turbines
- Large Gearboxes/Hydraulics
- Oil Misting
- Remote Applications
