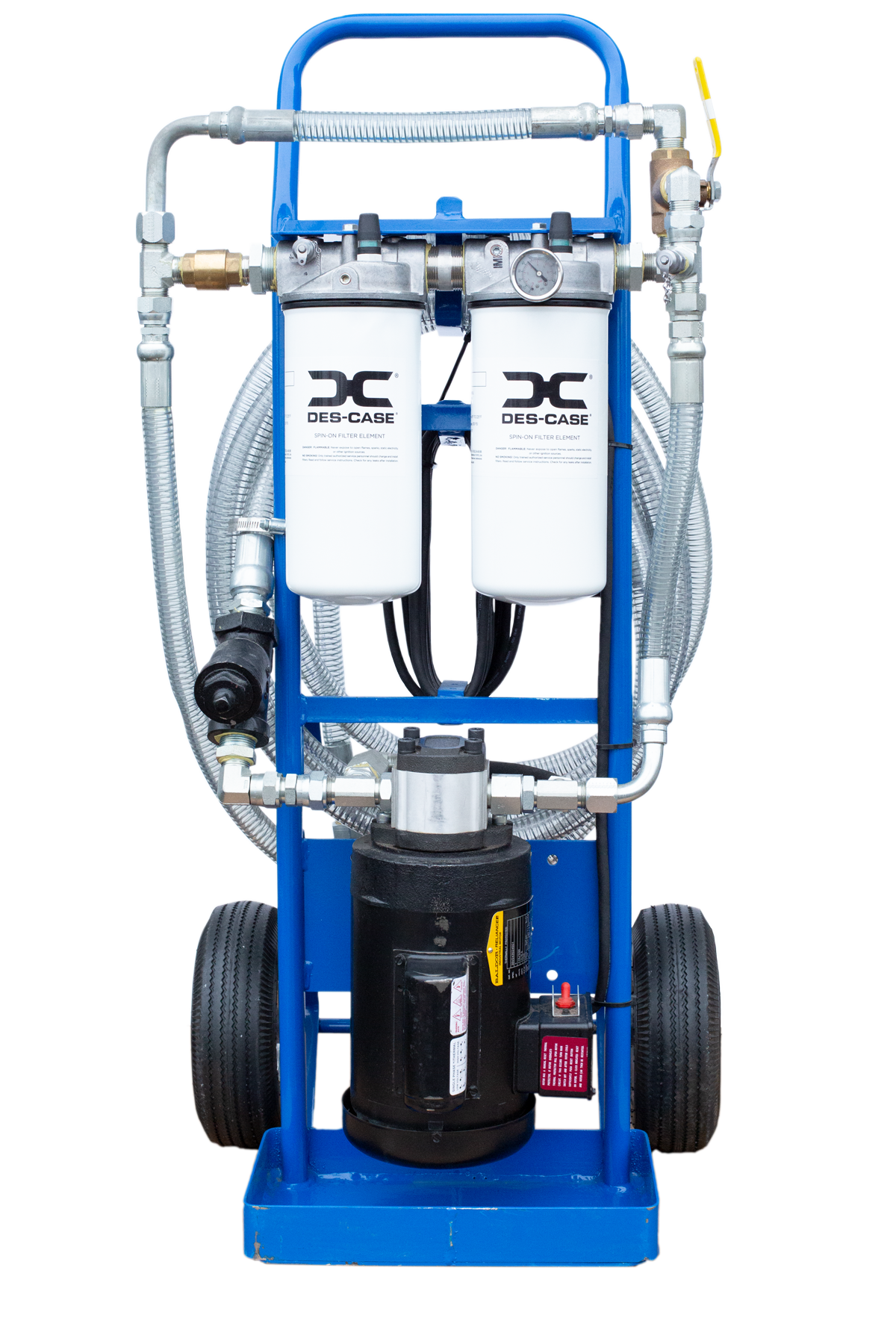

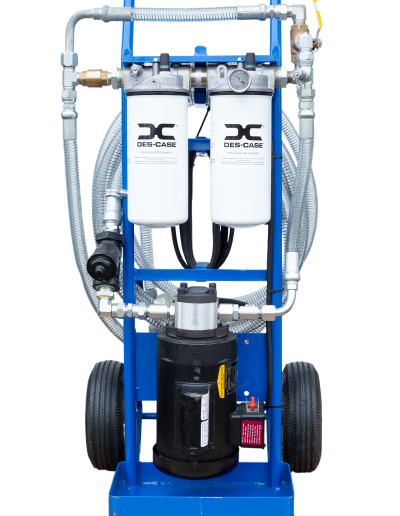

Filter Cart

Filter carts are ideal for use on small to medium-sized reservoirs with low flow rates. Compatible with mineral-based industrial fluids, portable systems such as the filter cart provide a cost effective solution to maintaining fluid cleanliness in multiple applications with the same lubricant.

View CE Solution

Contact Us

Filter Cart Customizer

< Back

Reset All

Download Technical Specs

For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of ISO VG 680 (3000ssu/648cSt) at 100°F/38°C within ambient temperature ranges of -15°F to 150°F (-26°C to 66°C)

Materials:

Frame: Carbon steel
Paint: Industrial powder coat
Filter Heads: Aluminum
Fittings: Zinc-plated steel and/or brass
Pumps: Aluminum/steel
Hoses: Clear PVC with steel wire or hydraulic hose
Gaskets: Buna-N

Filter Indicators:

Filter indicator pops at 22psid (1.55bar) as warning that filter elements need to be replaced

Pump Relief:

Opens at 65psi

Weight:

Approximately 100-150lbs (will vary depending on options selected)

Dimensions:

18.8″L x 21.5″W x 46.4″H

Replacement Parts

Elements are sold in cases of six and can be mixed and matched.

Replacement Filter Element Part Numbers

Part #	Description
DC-S10000S08BBU	5-micron Filter Element
DC-S10000S08CBU	7-micron Filter Element
DC-S10000S08EBU	12-micron Filter Element
DC-S10000S08FBU	22-micron Filter Element
DC-S10000W08FBU	Water Adsorption Filter Element

Features

Applications

Decontaminating systems
Flushing new or repaired systems
Dispensing new oil
Pre-filtering new oil
Evacuating used oil
Reservoir top-offs
Flushing systems

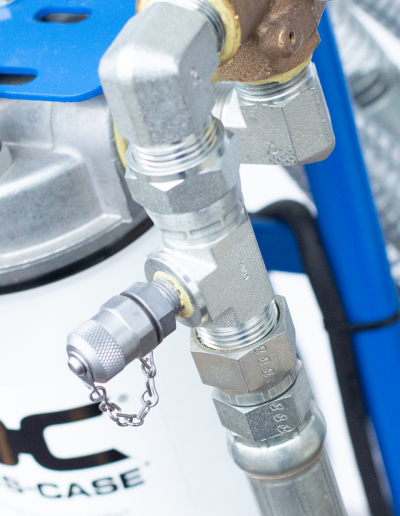

Collecting oil samples for analysis

Intended Use

To be used for offline, secondary filtration and not inline filtration
In general industrial environments, both indoors and outdoors (IP rating of 54)
For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of ISO 680 at 100°F/38°C (3,000 ssu/648cSt) within ambient temperature ranges of -15°F to 150°F (-26°C to 66°C)
Placed at the same level or below the equipment being filtered and within reach of the recommended standard 12 foot hoses
This system should be stored and used on a level surface, right side up, in a low-traffic area, and connected to the appropriate power source

What is Standard

Automatic pressure relief valve
Non-bypass filter heads which prevent particles from passing by when the filters reach maximum saturation
Dual-stage filtration

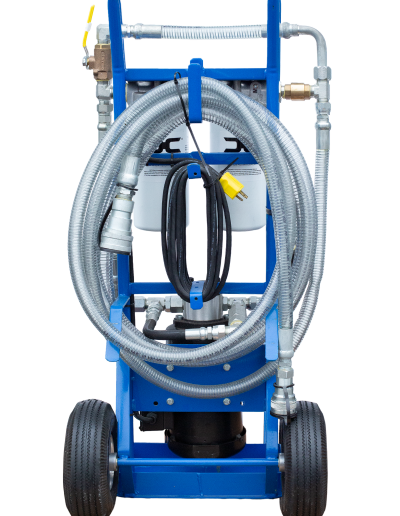

12′ hose assemblies with various quick connect options
Pneumatic wheels for easy mobility
Industrial powder-coated paint
Heavy-duty cart with oil catch pan
One-year warranty
25 ft cord (for electric motors only)

Did You Know...

Contamination is the greatest single cause of lubricant malfunction and subsequent excessive wear of parts?

Less than 0.5% of a plant’s maintenance budget is spent purchasing lubricants, but the downstream effects of poor lubrication can impact as much as 30% of a plant’s total maintenance cost each year.
