Specifications
| GOLU1B | |
| Dimensions H x W x D | 1225 x 581 x 290 mm |
| Weight | 115 kg |
| Power supply all 50/60Hz 3ph | 230/400 VAC |
| 400/690 VAC | |
| 200/690 VAC | |
| Inlet & Outlet connection | 1 ½” SAE 3.000 psi / 205 Bar |
| Power rate | 2,2 kW |
| Flow rate | Approx. 80 l/min (depending on frequency) |
| Viscosity range | Viscosity range 12-800 cSt |
| Pump safety valve | 15 bar |
| Filter element fineness | Fibre glass 1, 3, 6, 12, 25 micron |
| Water absorbing element | Super absorbent polymer, combined with fiber glass A6, A12 |
| Unit seals | FPM (Viton) |
| GOLU3C | |
| Dimensions H x W x D | 1357x678x617 mm |
| Weight | ± 285 kg |
| Inlet & Outlet connection | 3” SAE 3.000 PSI/ 205 Bar |
| Flow rate | Max. 470 l/min |
| Viscosity range | 12-800 cSt (Element dependent) |
| Max. working pressure | 16 bar |
| Filter element fineness | Fibre glass 1, 3, 6, 12, 25 micron |
| Water absorbing element | Super absorbent polymer, combined with fiber glass A6, A12 |
| Unit seals | NBR |
Features

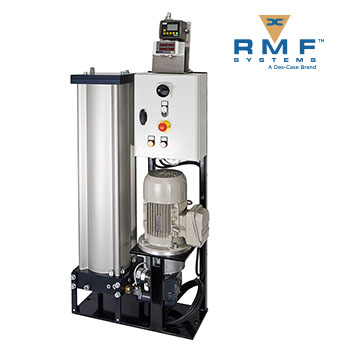

The Giant can be used on hydraulic power units, lube and oil tanks, Large gearboxes, and storage tanks for biodegradable fluids.
Industries that are successfully applying ‘The Giant’ include: steel industry, marine industry, automotive industry, pulp & paper industry.
Monitoring
The Giant can be equipped with additional components for Condition Monitoring, such as the CMS (Contamination Monitoring Sensor), the OQS (Oil Quality Sensor) and the OQD (Oil Quality Display). The electrical control box is already prepared for these additions.
- Reduces solid particle contamination
- Maintains excellent cleanliness levels
- Reduces water contamination
- Reduces machine downtime
- Reduces oxidation of the oil
- Extends the machines useful life
- Reduces cost of ownership
Did You Know...
Contamination is the greatest single cause of lubricant malfunction and subsequent excessive wear of parts?
Less than 0.5% of a plant’s maintenance budget is spent purchasing lubricants, but the downstream effects of poor lubrication can impact as much as 30% of a plant’s total maintenance cost each year.
It cost ten times as much to remove contamination from equipment than it does to exclude it?
