|Model||Unit Height (in / mm)||Unit Diameter (in / mm)||Connection Size||Amount of Silica Gel (lbs / kg)||Adsorption Capacity (fl oz / ml)||Max. Flow Rate (cfm)||Max. Flow Rate (lpm)||Filter Efficiency||Operating Temp. Range (°F)||Operating Temp. Range (°C)|
|DC-IL-EX-4||10.0 / 254||5.67 / 144||1″ Female (FNPT)||4.2 / 1.91||27.0 / 798||24 @ 1psid||680||3µ absolute (ß₃≥200)||-4˚ to 129˚||-20° to 54°|
|DC-IL-VG-1||5.3 / 135||2.5 / 64||3/8″ Multi-Fit (NPT, BSPP, BSPT)||0.28 / 0.127||1.68 / 50||1.45 @ 1 psid||41||3µ absolute (β₃≥200)||-4° to 129°||-20° to 54°|
|DC-IL-VG-4||10.1 / 257||4 / 102||1″ Multi-Fit (NPT, BSPT, NPSM)||1.88 / 0.85||11.3 / 353||2.98 @ 1 psid||84||3µ absolute (β₃≥200)||-4° to 129°||-20° to 54°|
|Model||Max. Airflow at 1 psid (gpm/lpm)||Gearbox/Storage Tank Max.Volume (gal/L)||Hydraulic Reservoir Max. Volume(gal/L)|
|DC-IL-VG-1||11 / 41||35 / 132||5 / 19|
|DC-IL-VG-4||22 / 84||500 / 1893||200 / 757|
|DC-IL-EX-4||180 / 680||1000 / 3785||400 / 1514|
Please Note: This is intended as a general guideline for sizing only; other considerations, such as: humidity level, frequency of air flow, ambient temperatures, and chemical compatibility are very important in sizing a breather properly. Larger applications and special circumstances typically require the most thorough analysis. Please contact Des-Case for assistance in sizing a breather.
|Model Number||Part Number||Descriptions|
|DC-IL-VG-1||DC-37||PVC 3/8″ Female NPT to 1/2″ Male Threaded NPT Adapter|
|DC-35||PVC 3/8” Female NPT to ¾” Male Threaded NPT Adapter|
|DC-36||PVC 3/8” Female NPT to 1” Male Threaded NPT Adapter|
|DC-IL-VG-4||DC-17-T||PVC 1” Female NPT to ¾” Male Threaded NPT Adapter|
|DC-13-T||PVC 1” Female NPT to 1” Female Threaded NPT Adapter|
|DC-12-T||Polypropylene 1” Female NPT to 6 Bolt Circular Mounting ((Ø 3.5″)|
|DC-12-T-SD||Steel 1” Female NPT to 6 Bolt Circular Mounting ((Ø 3.5″)|
|DC-15-T||Aluminum 1” Female NPT x 1-1/2” Bayonet Style|
|DC-IL-EX-4||DC-EXA-17||Steel 1” Male NPT to ¾” Male Threaded NPT Adapter|
|DC-EXA-10||Steel 1” Male NPT to 1” Male Threaded NPT Adapter|
|DC-12-T-EX||Steel 1” Male NPT to 6 Bolt Circular Mounting ((Ø 3.5″)|

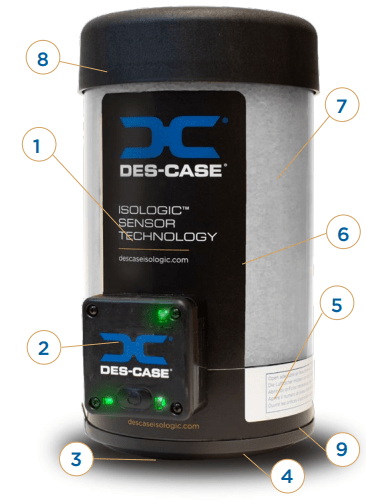

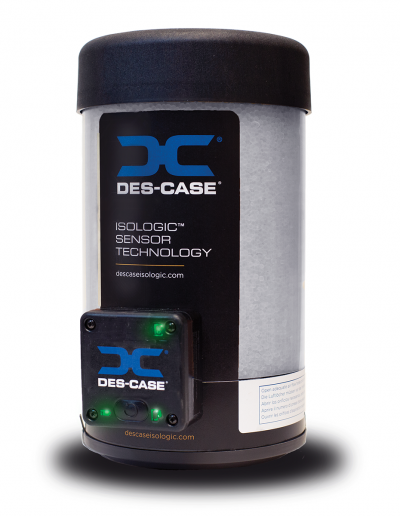

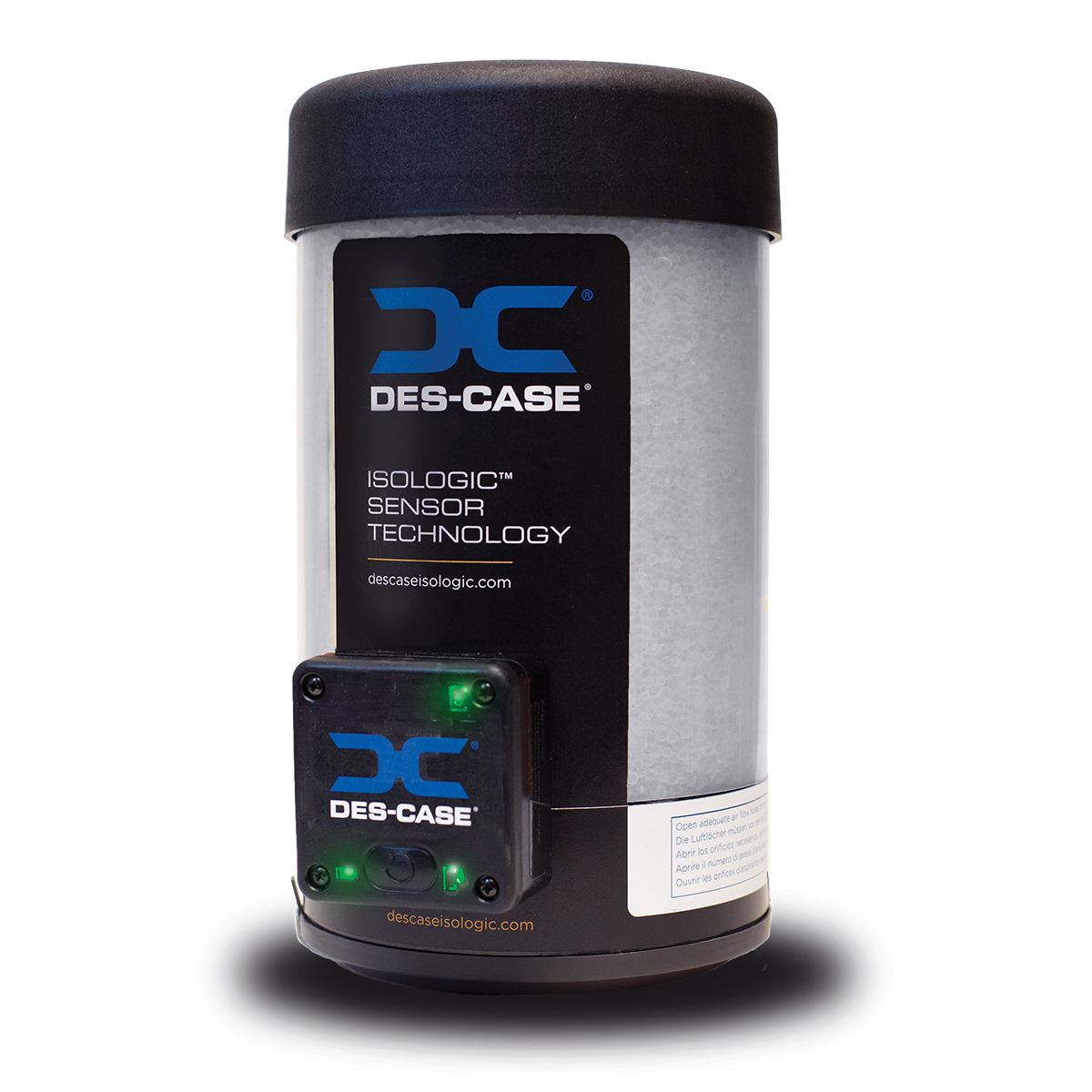

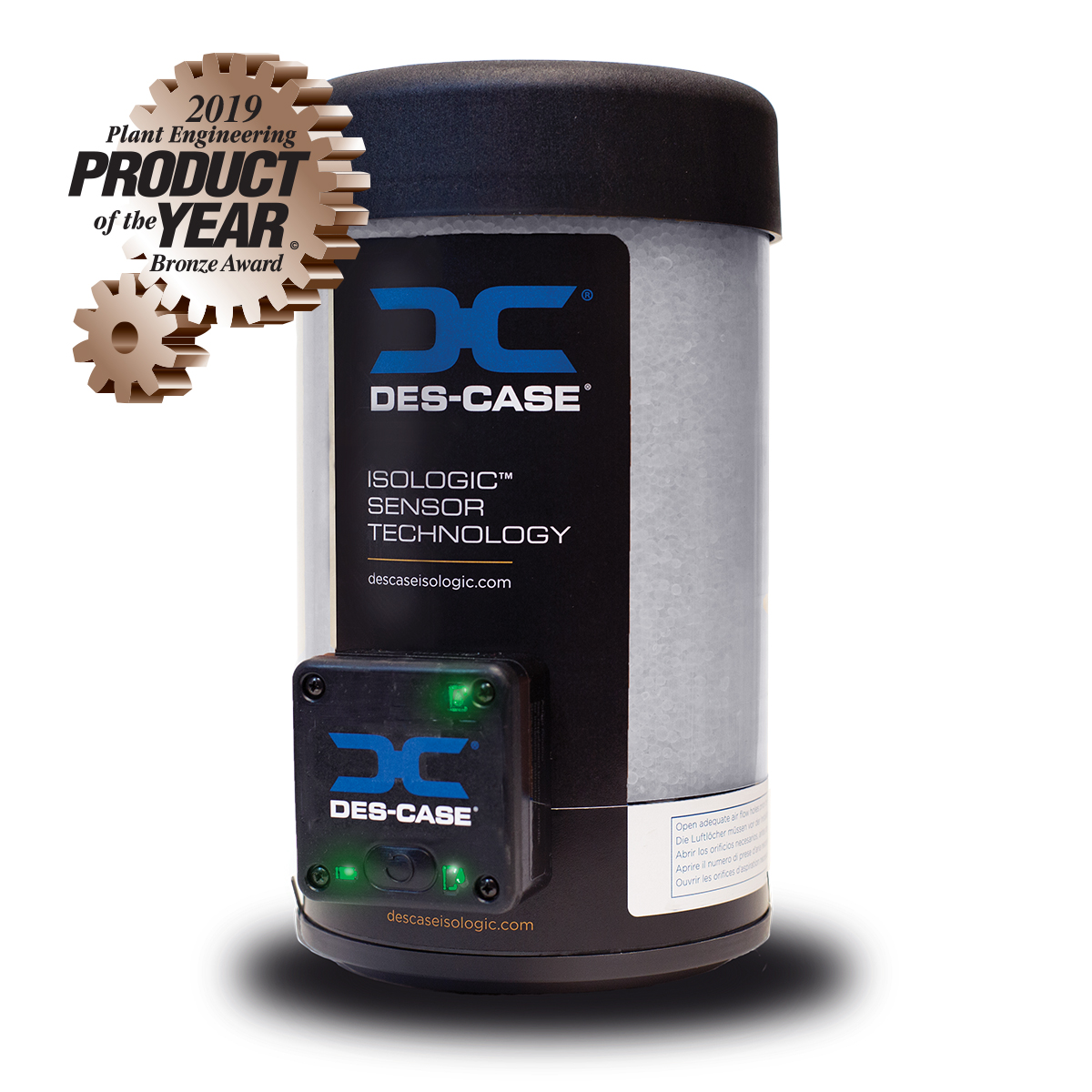

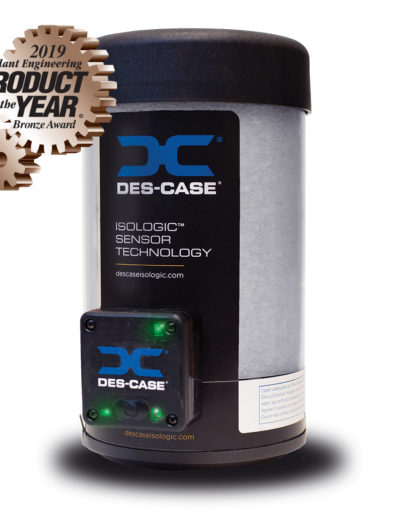

By the Numbers
Measures critical values to calculate the remaining breather life, temperature and saturation direction
2. Detachable Module
Calculates the remaining breather life, temperature and saturation direction and stores breather data
3. Threaded Mounting
Internal threads provide durability and stability and can be used with one of several adapters
4. Recessed Check-Valves
High-quality umbrella check-valves that won’t clog or stick are recessed underneath the unit for added protection from washdown environments. Check-valves isolate equipment from ambient conditions, prolonging breather life.
5. Filter Element
Polyester filter element removes airborne contamination to 3-micron absolute. Unique loops allow particles to release during system exhalation, helping to increase breather life.
6. Resilient Polycarbonate Body
Shock-absorbing, clear casing provides reliable service and easy maintenance.
7. Water Adsorbent
Silica gel adsorbs water from incoming air and can hold up to 40% of its weight. Condition is indicated by change of color from blue to light pink.
8. Secondary Filter Element
Second polyester filter element protects against migration of desiccant dust, providing maximum efficiency
9. Foam Pad
Foam filter captures any oil mist and disperses incoming air evenly over filtration and drying areas.
- Intermittent Operations
- Low-Flow Applications
Module Materials & Components:
- Casing: Polycarbonate, Steel (ball plunger)
- Cap: Thermoplastic elastomers (TPE), Steel (screws)
- Circuit Board: LED lights, FR4 Fiberglass
- Batteries: 1.5V alkaline AAA (Manganese Dioxide, – Zinc, Potassium Hydroxide, Graphite)
Module Battery & Power:
- Supply Source: Three AAA Batteries (each rated 1.5 V d.c., Max 1200 mAh)
- Supply Voltage: 4.5 V d.c.
- Operational Current Rating: 30 mA
- Life Expectancy: 2 years (use and temperature dependent)
- Intended for indoor and outdoor use
- Altitude up to 5,000 meters
- Maximum Relative Humidity: 100% at up to 54˚C
- Dustproof / Waterproof (IP66)
- Hazardous Ratings: Not rated for hazardous locations – FCC, CE, Reach, RoHS
- 2402.0 – 2480.0 MHz Bluetooth 4.0 Low Energy
- 13.56 – 13.56 MHz RFID
- Communication Range: 100ft (30m) line of sight

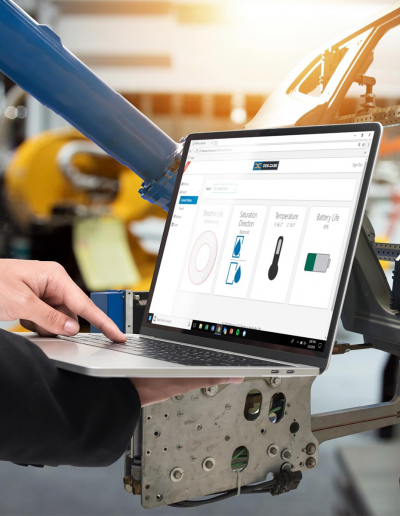

Android: – Bluetooth 4.0 and higher – Android OS 5.0 and higher
Apple: – iOS 10.0 and higher
- Data readings every 60 minutes
- Stores 365 days of hourly data points
Breather Sizing Wizard
Not sure which breather is right for your system? Try our sizing wizard to help determine the best solution for you.
