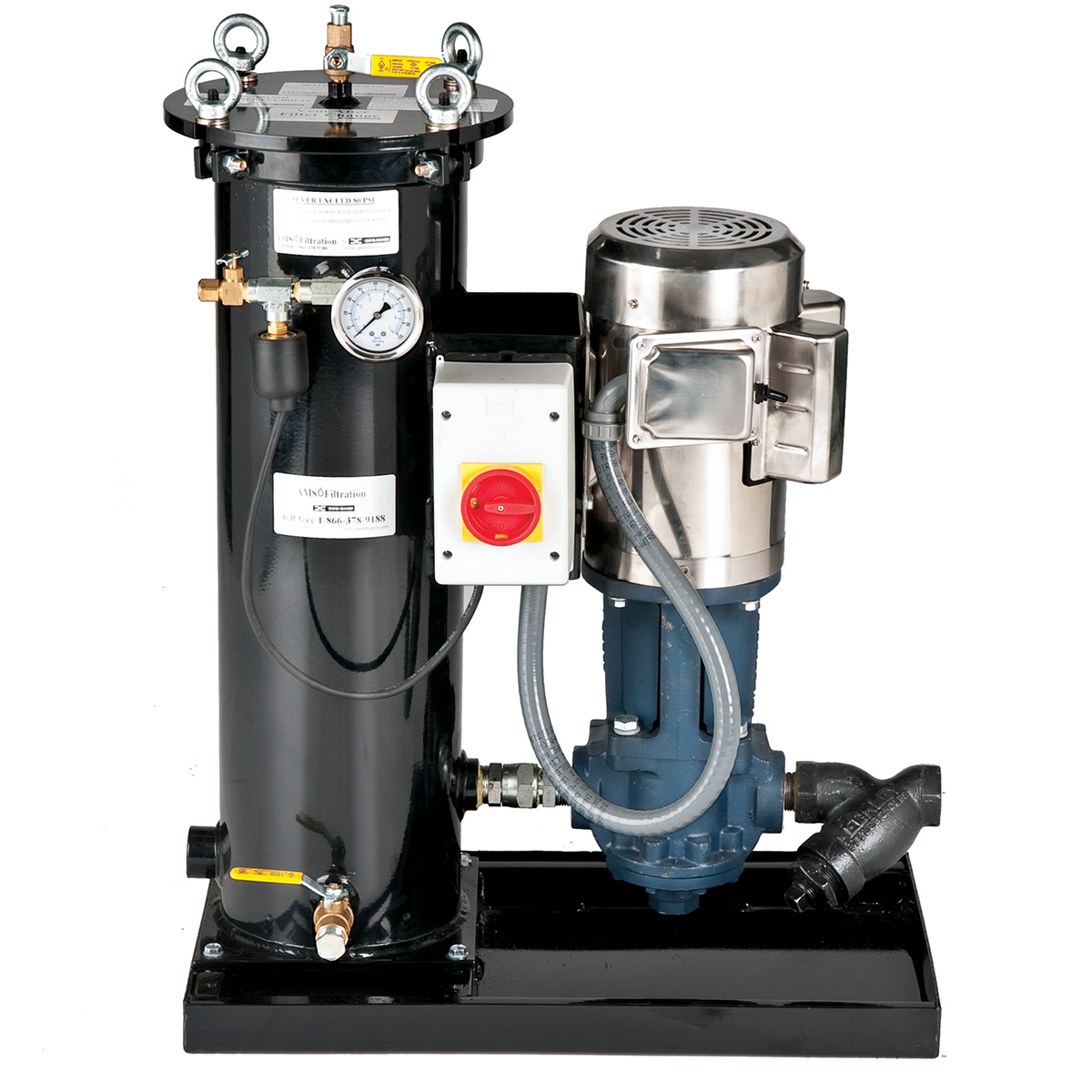

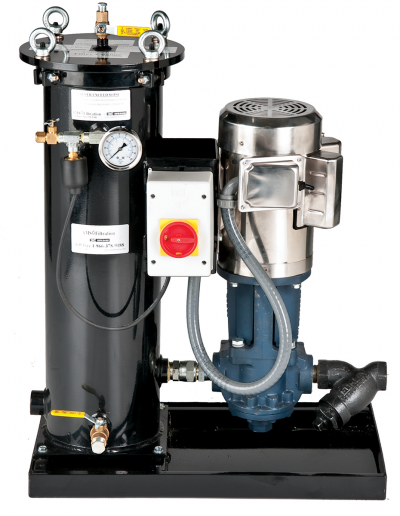

TC Series T Stand

The TC Series T-Stands represent the highest quality and most rugged systems available for dedicated filtration of all types of industrial oils. These heavy-duty systems are capable of removing particles and/or free water from all types of oil—even high viscosity gear oils—and are designed for years of dependable service.

TC Series T-Stands are ideal for large reservoirs with high flow rates. With canisters that can accommodate multiple filter types such as microfiberglass drop-in filters, depth filters and bag filters, the TC Series T-Stands can remove everything from large particles and debris, sludge, varnish, and water contamination.

Contact Us

Specifications

Download Technical Specs

Features

Performance

Ambient Operating Temperatures

– 25°F to 104°F (-32°C to 40°C)

Oil Temperature Range

-15°F to 175°F (-26°C to 79°C)

High-Pressure Switch

Shuts down the system’s motor at 65psi (5.49bar)

Pump Relief

Opens at 75psi (5.17bar)

Materials

Frame: Carbon steel
Paint: Industrial powder coat
Fittings: Zinc-plated steel, brass, bronze, stainless steel, cast iron
Pumps: Steel, Buna-N, iron, Viton®, graphite
Hoses: EPDM or Nitrile

Weight

Approximately 260-650 lbs (118-295Kg). Will vary depending on options selected

Applications

Decontaminating systems
Flushing new or repaired systems
Pre-filtering new oil
Collecting oil samples for analysis

Intended Use

To be used for offline, secondary filtration and not inline filtration.
In general industrial environments, both indoors and outdoors.
For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of 32-648cSt (150-3000ssu) within ambient temperature ranges of -25°F to 104°F (-32°C to 40°C).
Placed at the same level or below the equipment being filtered and with no more than 12-foot of adequately sized pipe/ hose
This system should be stored and used on a level surface, right side up, in a low-traffic area, and connected to the appropriate power source.

Viscosity Range

Up to ISO Vg- 680 (4,000 sus @ 100°F )

What is Standard

Canisters

Heavy-duty, industrial style with bolt-down lids and heavy gauge cylinder walls. These canisters can accept various size high-capacity microfiber glass, depth, water removal and molecular sieve elements and can be changed very easily.

Pump

Continuous-duty gear pump; 1-40gpm flow rates available

Motor

Washdown, heavy duty

Switch

NEMA 4 industrial-duty

Frame

Heavy-duty rectangular tubing

Lifting Eye Bolts

Allows for easy lifting and maneuverability

Gauges

Pump pressure and differential pressure gauges

Strainer

To protect the pump

Manual Bypass

To bypass filters during oil disposal

Colors

Standard is black; customizable colors available at no extra charge

What is Customizable

Flow rates
Sample valves
Type of strainer
Color
Power configurations
Filter media types and sizes
Type of power phase – single or three
