Mobile Utility Cart

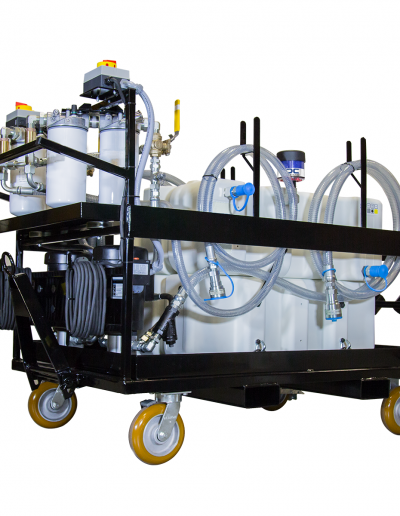

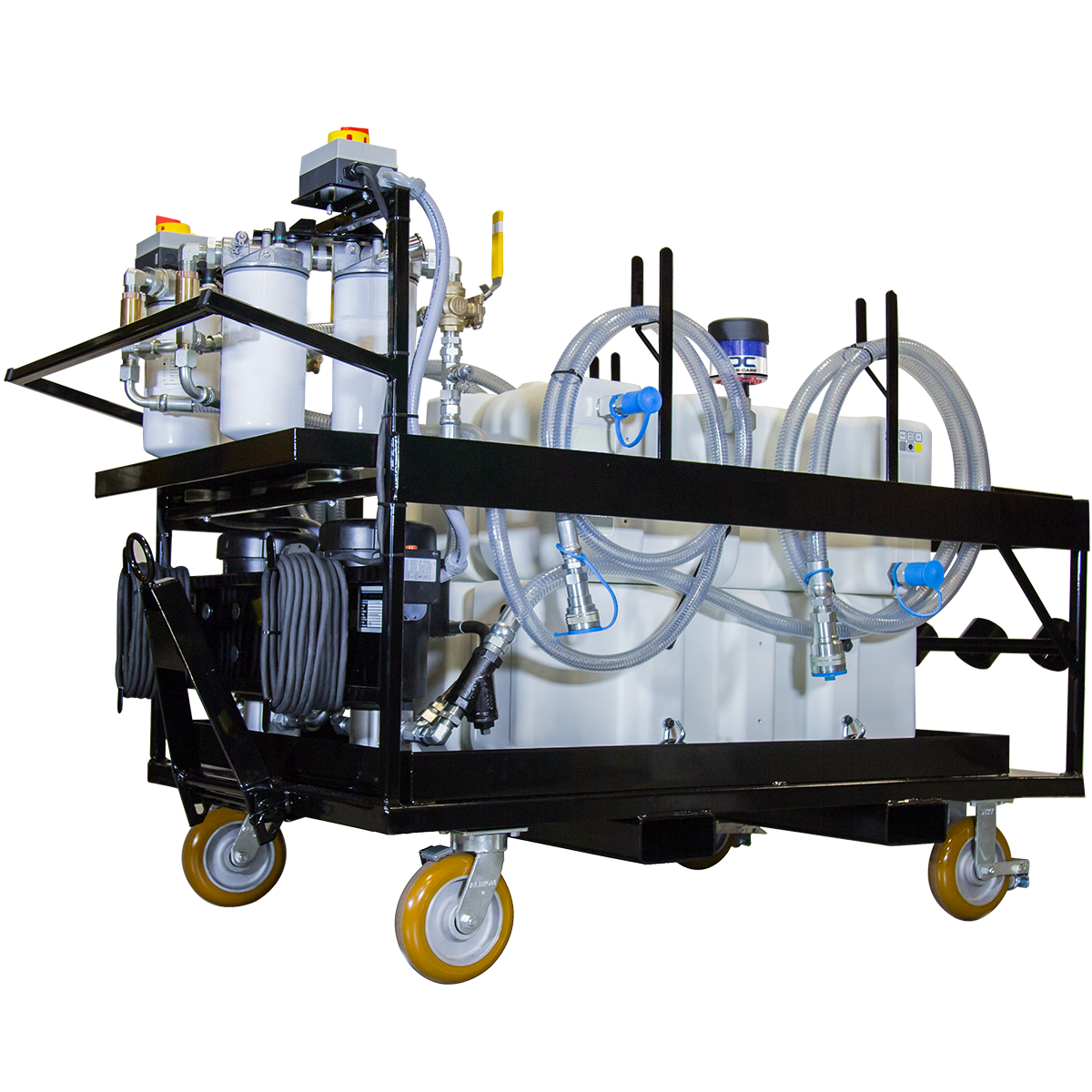

The Des-Case Mobile Utility Cart is the latest offering in fluid storage and handling products to improve process equipment reliability and extend lubricant life. This 3-in-1 mobile system combines filtration, storage, and handling in one simple solution to keep your lubricants clean and dry.

With the ability to deliver multiple oil types to multiple assets, the Des-Case Mobile Utility Cart is like a portable filtration system, transfer container, and lube room all rolled into one!

Contact Us

Specifications

Download Technical Specs

For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of ISO VG 680 (3000 ssu/648 cSt) at 100°F/38°C within ambient temperature ranges of -15–104°F (-26–40°C)

Materials:

Cart: Carbon steel
Tank: HDPE
Paint: Industrial powder coat
Filter heads: Aluminum
Fittings: Zinc-plated steel and/or brass
Pumps: Aluminum/steel
Hoses: Clear PVC with steel wire
Gaskets: Buna-N

Filter Indicators:

Filter indicator pops at 22 psid (1.55 bar) as warning that filter elements need to be replaced.

Pump Relief:

Opens at 65 psi (5.49 bar)

Features

Applications

Storing lubricants
Decontaminating systems
Flushing new or repaired systems
Dispensing new oil
Pre-filtering new oil
Evacuating used oil
Reservoir top-offs
Collecting oil samples for analysis

What is Standard

Heavy-duty cart with industrial powder-coated paint
Removable storage tray for IsoLink™ oil transfer containers
Oil catch pans
Automatic pump pressure relief valve
Dual-stage filtration
Non-bypass filter heads which prevent particles from passing by when the filters reach maximum saturation
Dedicated pump and motor per tank
Desiccant breathers for tanks
HDPE tanks in 35 or 65-gallon volumes
12’ hose assemblies with various hose-end connections
25ft cords (for electric motors only)
One-year warranty

What is Customizable

Flow rates
Filter bypass
Sample valves
Filter micron rating
Hose-end connection sizes and types
Tank sizes
Y-Strainer

Did you Know...

Contamination is the greatest single cause of lubricant malfunction and subsequent excessive wear of parts?

Less than 0.5% of a plant’s maintenance budget is spent purchasing lubricants, but the downstream effects of poor lubrication can impact as much as 30% of a plant’s total maintenance cost each year.
