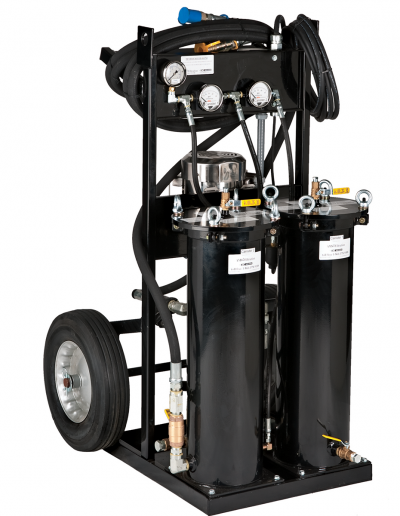

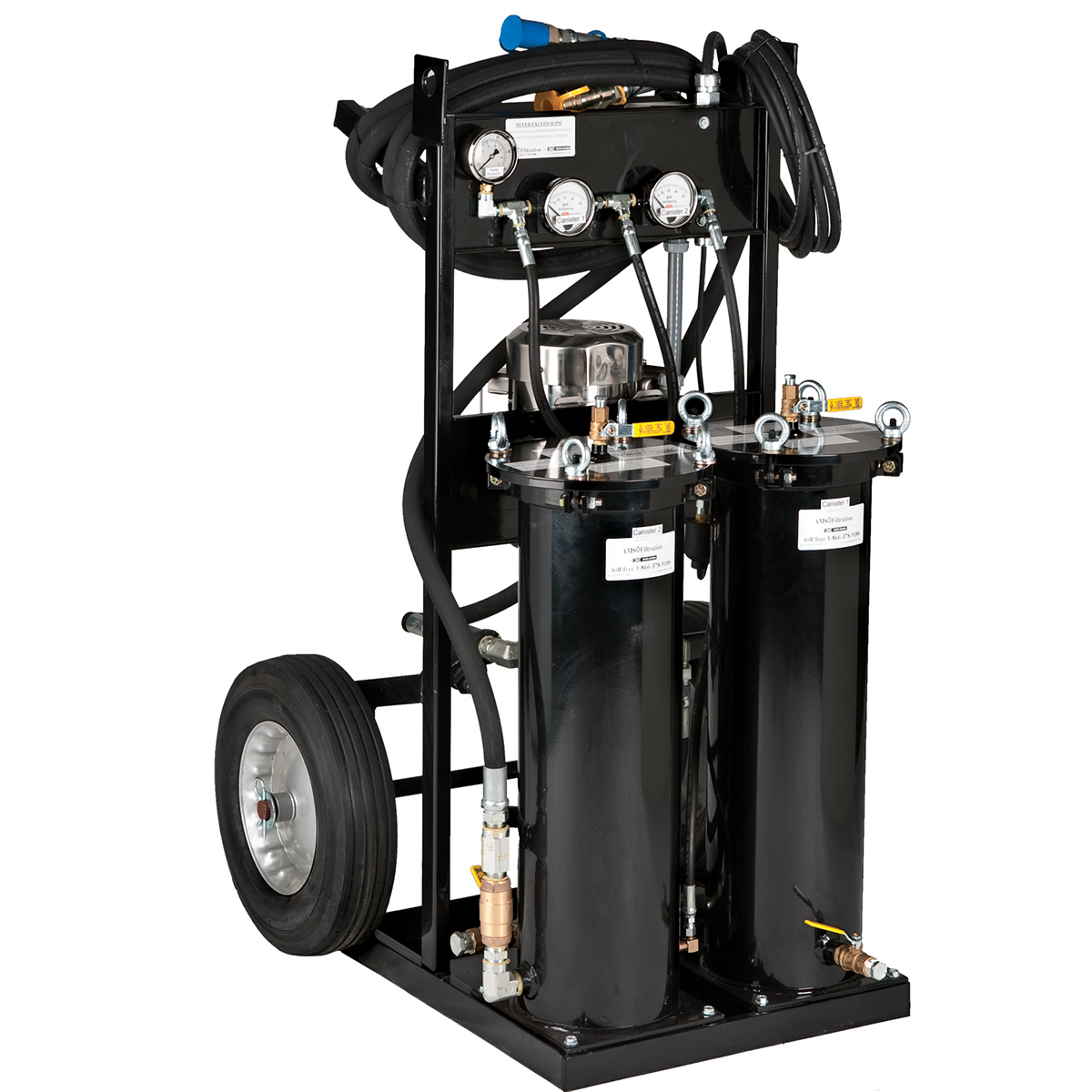

TC Series Filter Cart

TC Series Filter Cart

The TC Series of filtration systems represent the highest quality and most rugged systems available for purifying all types of industrial oils. These heavy-duty carts are capable of removing particles and/or free water from all types of oil—even high viscosity gear oils—and are designed for years of dependable service.

TC Series filter carts are ideal for large reservoirs with high flow rates. With canisters that can accommodate multiple filter types such as microfiberglass drop-in filters, depth filters and bag filters, the TC Series carts can remove everything from large particles and debris, sludge, varnish, and water contamination.

Contact Us

Specifications

Download Technical Specs

Features

Performance

Ambient Operating Temperatures

– 25°F to 104°F (-32°C to 40°C)

Oil Temperature Range

– 15°F to 175°F (-26°C to 79°C)

High Pressure Switch

Shuts down the system’s motor at 65psi (5.49bar)

Pump Relief

Opens at 75psi (5.17bar)

Materials

Frame: Carbon steel
Paint: Industrial powder coat
Fittings: Zinc-plated steel, brass, bronze, stainless steel, cast iron
Pumps: Steel, Buna-N, iron, Viton®, graphite
Hoses: EPDM or nitrile

Weight

Approximately 260-650lbs (118 to 295Kg). Will vary depending on system configurations.

Applications

Decontaminating systems
Flushing new or repaired systems
Dispensing new oil
Pre-filtering new oil
Evacuating used oil
Topping-off reservoirs
Collecting oil samples for analysis

Intended Use

To be used for offline, secondary filtration and not inline filtration.
In general industrial environments, both indoors and outdoors.
For filtering mineral-based industrial oils and most synthetic oils with a maximum operating viscosity range of 32-648cSt (150-3000ssu) within ambient temperature ranges of -25°F to 104°F (-32°C to 40°C).
Placed at the same level or below the equipment being filtered and within reach of the recommended standard 12-foot hoses.
This system should be stored and used on a level surface, right side up, in a low-traffic area, and connected to the appropriate power source.

What is Standard

Canisters

Heavy-duty, industrial style with bolt-down lids and heavy gauge cylinder walls. These canisters can accept various size high-capacity microfiber glass, depth, water removal and molecular sieve elements and can be changed very easily.

Pump

Continuous-duty gear pump; 1-40gpm flow rates available:

Motor
Washdown, heavy duty
Switch
NEMA 4 industrial-duty
Frame
Heavy-duty rectangular tubing

Lifting Eye Bolts

Allows for easy lifting and maneuverability

Hoses

Steel braid reinforced hydraulic hoses

Gauges

Pump pressure and differential pressure gauges

Strainer

To protect the pump

Manual Bypass

To bypass filters during oil disposal

Wheels

16″ solid rubber

Colors Standard is black

Customizable colors available at no extra charge

What is Customizable

Flow rates
Sample valves
Strainer type
Color
Power configurations
Filter media types and sizes
Type of power phase – single or three

Did You Know...

Contamination is the greatest single cause of lubricant malfunction and subsequent excessive wear of parts?

Less than 0.5% of a plant’s maintenance budget is spent purchasing lubricants, but the downstream effects of poor lubrication can impact as much as 30% of a plant’s total maintenance cost each year.
