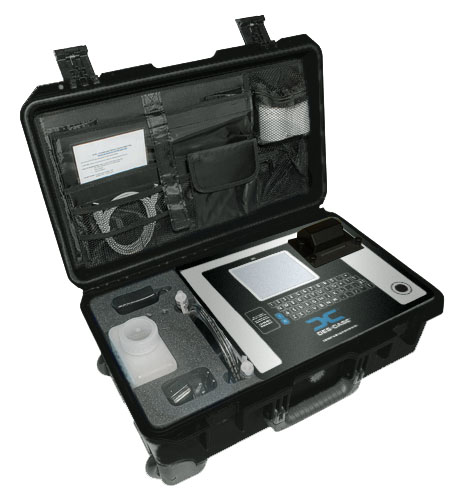

Portable Laser Particle Counter

Fluid analysis is a crucial component of any oil management program. Early detection of potential problems can prevent costly repairs and downtime. The Portable Laser Particle Counter makes it possible to detect the ISO Cleanliness levels of the hydraulic media. The Portable Laser Particle Counter is available in different versions.

Specifications

POWER SUPPLY

  • Voltage range: 110 … 240 V, AC 12 … 24 V DC
  • European, UK and US power plug adaptors
  • Pressure range: 2 … 400 bar
  • Viscosity range up to 400 cSt

CALIBRATION

  • ISO Medium Test Dust (MTD) acc. to ISO 11171:1999
  • Analysis range: ISO 8-24, ISO 4406 Code, NAS 1638 Code 2-12, SAE AS 4059 Code 2-12

LASER SENSORS

  • High accuracy laser: 4 … 6 μm(c)
  • Standard accuracy laser: 6 … 68 μm(c)
  • Measured channels: 4, 6, 14, 21, 25, 38, 50, 68 μm(c)
  • The maximum concentration is ISO 4406 Code 24 (160.000 p/ml)

HOSE CONNECTIONS

  • Minimess M16x2

DATA OUTPUT

  • Cumulative particle counts, as well as cleanliness classes acc. to ISO 4406 (1999) / SAE AS 4059 Rev.D (2001) and ISO 4406 (1191) / NAS 1638 (1964)

DATA STORAGE

  • 600 tests

FLUID COMPATIBILITY

  • Mineral Oil, Petroleum based fluids
  • Phosphate Ester and Water Glycol compatible devices on request (see ordering code)

COMPUTER INTERFACE

  • USB communication port

EXTERNAL ALARM

  • External alarm socket with switching outputs max. 24 V DC/AC, 1 A

SOFTWARE

  • Downloading and storage of the data with included “RMF View” software.

WEIGHT

  • Approx. 13 kg

Features

The Portable Laser Particle Counter devices feature a twin laser system and eight channels for different particle sizes in order to guarantee high accuracy and repeatability. These compact unit are easy to handle for mobile and inline applications for systems with pressures up to 400 bar / 5801 PSI.

– Compact and Convenient
– Twin-laser, 100% Coverage
– Integrated Clock – Adaptable – Software Updates
– Electric operated flush valve
– Option of adding an integral moisture / temperature sensor
