3-D BullsEye®

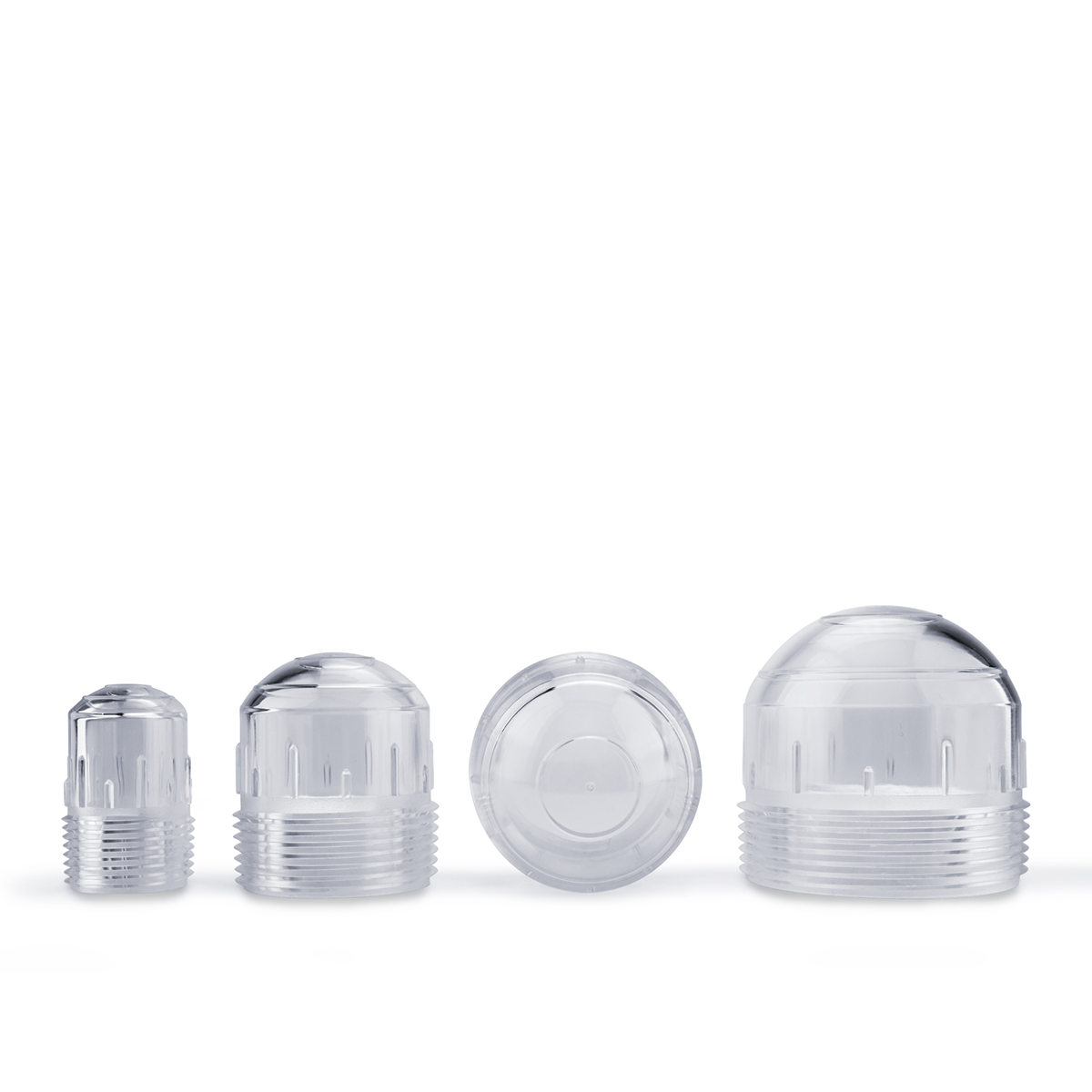

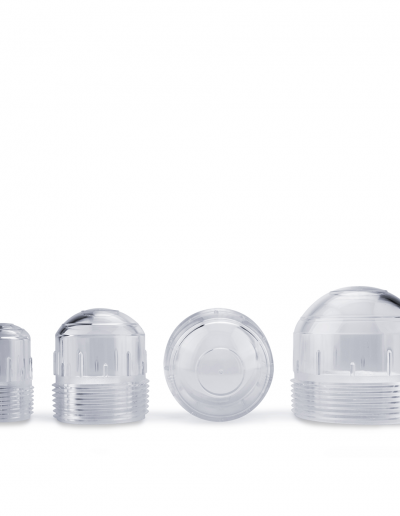

The 3-D BullsEye, made of a high performance transparent polyamide, allows immediate and accurate visual oil level monitoring from virtually any angle. Engineered to outperform and outlast traditional viewports, the inherently strong material provides excellent impact, chemical and UV resistance.

Specifications

NPT Polyamide Sizes

Part Number Description Outside Diameter Length from Last Thread
DC-3DB0250 1/4″ NPT 0.84 in / 2.133 cm 1.75 in / 4.445 cm
DC-3DB0375 3/8″ NPT 0.91 in / 2.311 cm 1.81 in / 4.597 cm
DC-3DB0500 1/2″ NPT 0.77 in / 1.955 cm 1.53 in / 3.886 cm
DC-3DB0750 3/4″ NPT 1.02 in / 2.590 cm 1.66 in / 4.216 cm
DC-3DB1000 1″ NPT 1.26 in / 3.200 cm 1.85 in / 4.699 cm
DC-3DB1250 1-1/4″ NPT 1.61 in / 4.089 cm 1.90 in / 4.826 cm
DC-3DB1500 1-1/2″ NPT 1.85 in / 4.699 cm 2.01 in / 5.080 cm
DC-3DB2000 2″ NPT 2.32 in / 5.892 cm 2.30 in / 5.842 cm

BSPP Polyamide Sizes

Part Number Description Outside Diameter Length from Last Thread
DC-3DBBSPP0500 1/2″ BSPP 1.34 in / 3.403 cm 1.65 in / 4.191 cm
DC-3DBBSPP0750 3/4″ BSPP 1.59 in / 4.038 cm 1.65 in / 4.191 cm
DC-3DBBSPP1000 1″ BSPP 1.86 in / 4.724 cm 1.85 in / 4.699 cm

Metric Polyamide Sizes

Part Number Description Outside Diameter Length from Last Thread
DC-3DBM10X1.0 M10x1.0 0.72 in / 1.828 cm 1.97 in / 5.003 cm
DC-3DBM10X1.5 M10x1.5 0.65 in / 1.651 cm 1.74 in / 4.419 cm
DC-3DBM12X1.5 M12x1.5 0.76 in / 1.930 cm 1.87 in / 4.749 cm
DC-3DBM16X1.5 M16x1.5 1.00 in / 2.540 cm 1.65 in / 4.191 cm
DC-3DBM20X1.5 M20x1.5 1.28 in / 3.251 cm 1.65 in / 4.191 cm
DC-3DBM22X1.5 M22x1.5 1.26 in / 3.200 cm 1.65 in / 4.191 cm
DC-3DBM24X1.5 M24x1.5 1.41 in / 3.581 cm 1.75 in / 2.794 cm
DC-3DBM26X1.5 M26x1.5 1.50 in / 3.810 cm 1.75 in / 4.445 cm
DC-3DBM27X1.5 M27x1.5 1.50 in / 3.810 cm 1.75 in / 4.445 cm
DC-3DBM30X1.5 M30x1.5 1.75 in / 4.445 cm 1.84 in / 4.673 cm
DC-3DBM30X2.0 M30x2.0 1.82 in / 4.622 cm 1.84 in / 4.673 cm
DC-3DBM33X1.5 M33x1.5 1.75 in / 4.445 cm 1.84 in / 4.673 cm

Features

1. Easy to install and maintain. Stands up to 275+ pounds of force.

2. Inherently strong material provides excellent impact, chemical, and UV resistance.

3. Made of a high-performance transparent polyamide, the 3-D BullsEye allows immediate
and accurate visual oil level monitoring from virtually any angle.

4. Integrated gripping ribs allow for easy installation.

5. Concentric circles aid in level marking.

NPT, Metric & BSPP Specs

Material:
Transparent Polyamide
– Brass fittings standard on 1/4″, 3/8″ NPT, M10X1.0, M10X1.5, and M12X1.5

Recommended Temperature Range:
– -40˚F to 200˚F
– -40˚C to 93˚C

Maximum Operating Pressure
– 65 psi at 200˚F
– 4.48 bar

Chemical Compatibility
All gear, mineral and synthetic oils

Available Options
NPT, Metric, BSPP Threads

  • Pumps
  • Gearboxes
  • Storage Tanks
  • Viewport Replacement
