Oil Level Indicators

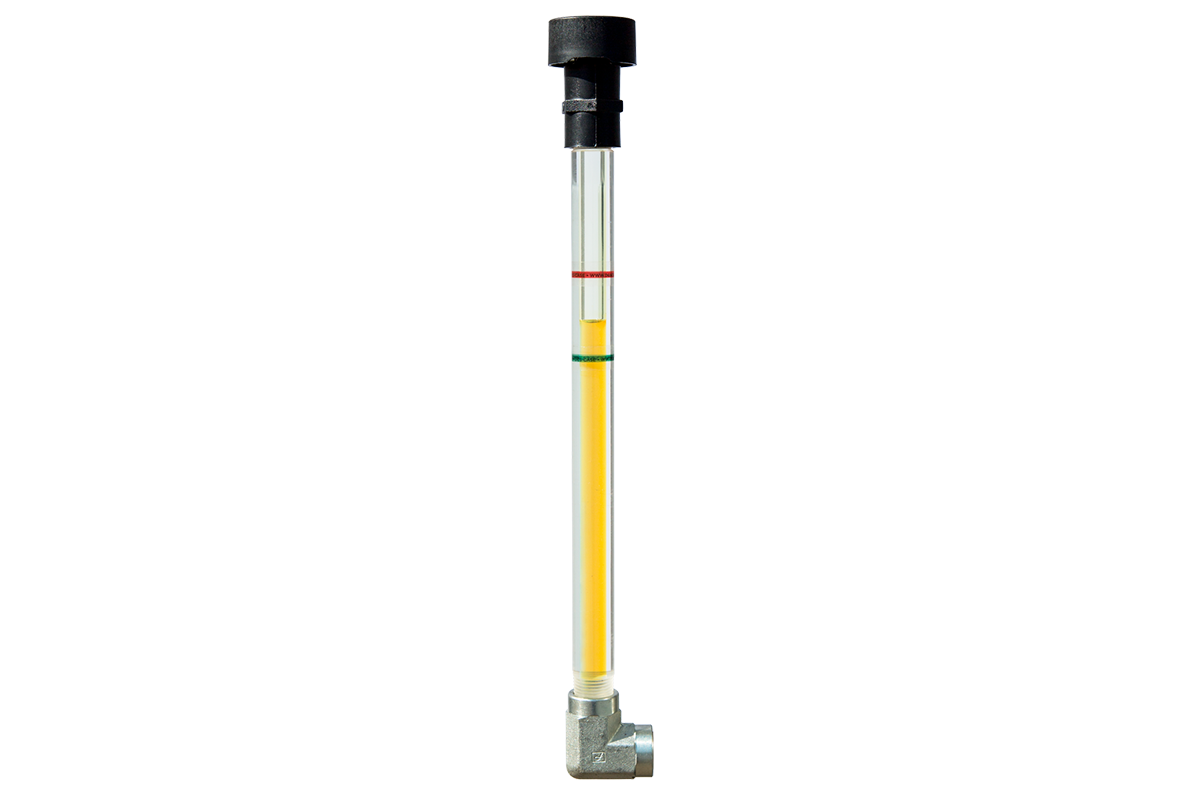

The Oil Level Indicator (OLI) was developed in response to the need of maintenance professionals to gauge the oil level inside large tanks, gearboxes and reservoirs. The OLI is a clear acrylic column with 1/2″ NPT threads at each end. Red and green level marker stickers are included with the OLI to mark upper and lower limits, or to designate running oil level and idle oil level. Utilizing the drain port, operators can visually monitor the fluid level within reservoirs.

* Stainless steel fittings and breather cap sold separately.

Specifications

Sizes

Part Number Description Overall Length Diameter of Acrylic
DC-OLI3 3″ OLI – 1/2″ MNPT X 1/2″ MNPT 3 in / 7.62 cm 0.875 in / 2.223 cm
DC-OLI6 6″ OLI – 1/2″ MNPT X 1/2″ MNPT 6 in / 15.24 cm 0.875 in / 2.223 cm
DC-OLI9 9″ OLI – 1/2″ MNPT X 1/2″ MNPT 9 in / 22.86 cm 0.875 in / 2.223 cm
DC-OLI12 12″ OLI – 1/2″ MNPT X 1/2″ MNPT 12 in / 30.48 cm 0.875 in / 2.223 cm
DC-OLI15 15″ OLI – 1/2″ MNPT X 1/2″ MNPT 15 in / 38.10 cm 0.875 in / 2.223 cm
DC-OSG3X500 3 oz X 1/2″ 3.15 in / 6.35 cm 2.50 in / 6.35 cm

Features

By the Numbers

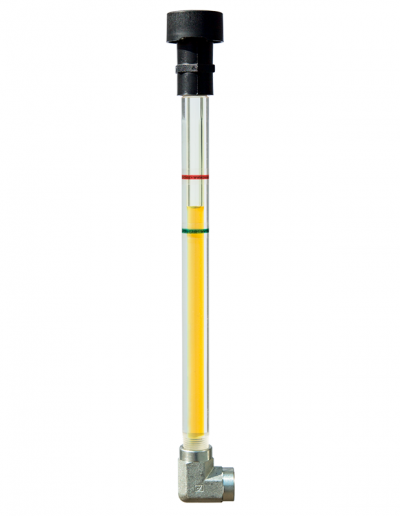

1. ND-2 Breather
*Sold separately

2. Idle/Maximum Oil Level Marker

3. Running/Minimum Oil Level Marker

4. Stainless Steel Fitting
*Sold separately



Specs

Material
Stain-resistant acrylic

Recommended Temperature Range
– -40˚F to 200˚F
– -40˚C to 93˚C

Maximum Operating Pressure
– 65 psi – 4.48 bar

Chemical Compatability
All mineral and synthetic oils

Available Options
– Lengths ranging from 3″ to 15″
– Stainless steel fittings
– 2 micron breather cap (3″ to 12″ models)
– Custom lengths available upon request

Applications

  • Pumps
  • Gearboxes
  • Storage Tanks
